Description:

While some consider the Vista 20P Hardwired Kit as a residential alarm control panel, it certainly comes equipped with enough features to use in commercial settings as well. This kit consists of a circuit board installed inside of a metal alarm cabinet. You can connect alarm keypads, hardwired alarm devices, alarm sirens, etc. to the alarm control panel’s circuit board to customize your home security system. The VISTA 20P alarm control panel does require pairing with at least (1) alarm keypad to control your home security system.

This kit supports up to (48) total zones of protection. There are (8) hardwired zones built into the alarm control panel itself. Using the zone doubling feature, you can expand those (8) zones up to a total of (15) zones.

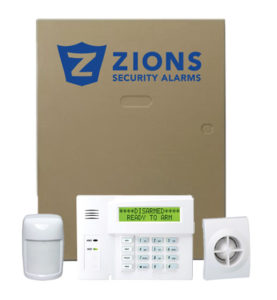

Includes:

• Vista 20P Control Panel and Box
• Honeywell Hardwired Alpha Keypad with Wireless Receiver
• Honeywell ADT Indoor Siren Hardwired
• 4 Amp Back up Battery
• Telco Jack and Cord

DOES NOT COME WITH THE FOLLOWING (AND YOU MIGHT WANT TO ADD THESE)

• Wireless Door Sensors
• Wireless Motion Detector
• Cellular GSM Radio
• Keychain Remote

You can also use terminals to wire a traditional phone line to your Vista 20P Kit if you want phone line alarm monitoring for your alarm control panel.

GENERAL:

The alarm control panel controls power by an included plug-in 120VAC transformer. This wires to terminals 1 and 2 on the VISTA 20P alarm control panel’s terminal strip. Terminals 4 and 5 provide auxiliary power (up to a maximum of 12VDC, 600mA) for powering devices like keypads, motion detectors, glass break detectors, etc. Terminals 3 and 4 supply up to 12VDC, 2AMP alarm output for compatible sounders. When a burglar alarm trips, the VISTA 20P uses a steady output and when a fire alarm tripps, it uses a temporal pulse. A rechargeable sealed lead-acid type battery can also be used to provide backup power during power outages. You must use at least a 12VDC, 4AH backup battery which should provide up to (24) hours of backup power.
