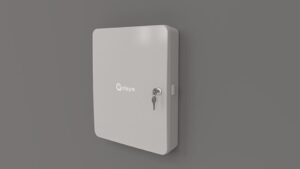

Qolsys Hardwire Large Enclosure

The Qolsys Hardwire Large Enclosure lets you take over old wired sensors in a clean, orderly fashion. This enclosure is also very useful if you are pre-wiring a house or business. This is a cost-effective way of integrating hardwired security with your Qolsys IQ Panel 2.

With lots of room for wiring, it’s easy to take over old hardwired security systems. In addition, this enclosure provides 500mA of 12-volt power to your sensors. Also included is an onboard siren relay and built-in LED status indicators for each sensor. Finally, this module is capable of powering up to 10 two-wire smoke detectors.

Power to the Sensors

This enclosure can also power sensors, such as motion detectors and glass break detectors.

Features

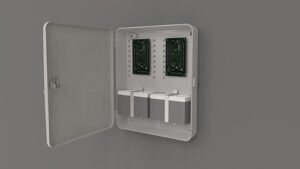

• Large plastic enclosure with ample wiring room, back-up battery holder, and also an expansion slot for a second module
• Encrypted S-Line sensor technology protects signals sent to the IQ Panel while still providing support for legacy 319.5 systems
• Supports up to ten two-wire smoke detectors
• LED lighted zones for ease of “learn-in” installation/troubleshooting
• EOL supervision using 4.7K Ohm resistors (included) or 1k-10k Ohm depending on Resistor Mode
• Up to 500 Milliamps of power for hardwired motion detectors, glass break detector, and/or sirens
• Charging circuit for back-up battery fully supervised with power outage recovery

Compatibility

• IQ Panel 2 Plus
• Hardwired Door, Window, Motion, and Glass Break Sensors
• 2-Wire Smoke Detectors
