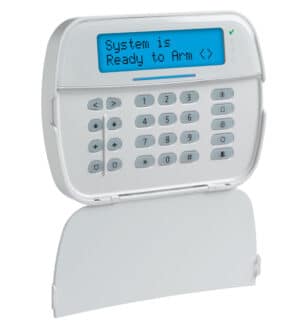

The DSC NEO Alpha Keypad is the keypad you need to have simple and thorough security. These slim-profile keypads come with an optional integrated PowerG transceiver to maximize wireless configuration flexibility.

Additionally, this keypad is available with three display options: full message 2×16 character LCD, ICON. Other features also include adjustable back-lit keys for low-light situations and five programmable keys for simple one button activation of system functions. The door chime function also allows for multiple pre-programmed chimes to identify specific zones.

The keypads’ integrated temperature sensor can be programmed to activate when room temperature dips below 43° F (6° C) and restores at 47° F (8° C). Additionally, built-in logic prevents the panel from cycling in and out of alarm mode during minor temperature fluctuations, helping to reduce false alarms. So you don’t have to worry about your alarm going off at the slightest temperature change.

The DSC NEO Alpha Keypad also features five programmable keys for easy one-button activation of system functions. The quick exit function avoids having to disarm and rearm the system every time an occupant leaves the premises.

This keypad is compatible with DSC Powerseries Neo.

Features:

• 6 language support
• Global partition status
• Up to 128 hardwired or wireless zones supported
• Full 32-character programmable labels
• Menu programming
• Modern, slim-line landscape keypad
• White backlit keys
• Blue LCD display
• Displays outdoor temperature
• 5 programmable function keys
• Intuitive clock programming
• Input/Output terminal
• Fire, medical and also panic keys
• Adjustable backlight and keypad buzzer
• Dual wall-mount and front cover tamper
• Available with English function keys
• Proximity with MPT mini prox tags

Specifications:

• Dimensions: (L x W x D): 168mm x 122mm x 20 mm (6 1/16” x 4 7/16” x 13/16”)
• LCD Viewable Area: 99 mm x 24 mm (3 9/10” x 15/16”)
• Current Draw: 60 mA
• Voltage: 12 VDC
• Nominal Operating Environment: -10°C to 55°C (14°F to 131°F)
• Relative Humidity: 5 to 93%
