ADT Power Supply 1.2A

$35.00

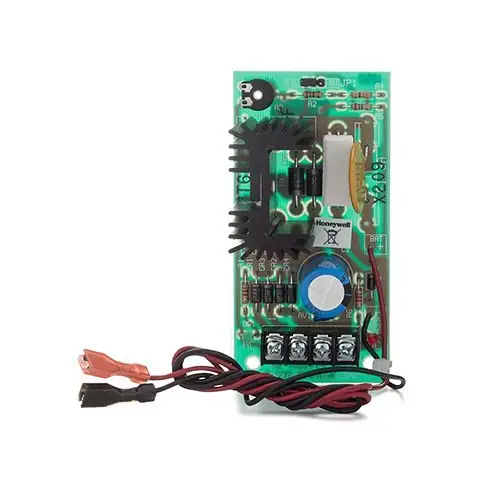

The ADT Power Supply 1.2A is an auxiliary power supply that can provide continuous 6VDC or 12VDC, 1.2A power output to security system devices that require supplementary power. The power supply also has a charging circuit which you can use to charge a backup battery.

SKU: 1166 Categories: ,
Description

The ADT Power Supply 1.2A is an auxiliary power supply that can provide continuous 6VDC or 12VDC, 1.2A power output to security system devices that require supplementary power. The power supply also has a charging circuit which you can use to charge a backup battery.

Honeywell alarm control panels have an auxiliary output that can supply a limited amount of power to devices that require power such as alarm keypads, alarm monitoring communicators, wireless receivers, wired motion detectors and wired glass break detectors. When you connect devices to the ECP terminals of a Honeywell VISTA Series alarm control panel, don’t exceed the maximum auxiliary output. If the power load exceeds the output, you’ll need to connect some devices to an auxiliary power supply.

ADT Power Supply 1.2A power supply is set up by default to provide 12VDC, 1.2A of power output. Move the jumper over to the right pins if you want the power supply to provide 6VDC power output instead.

Devices to power:

We recommend this power supply to power the Tuxedo Touch and Tuxedo Touch WIFI graphic touchscreen keypads. Simply connect the (2) ECP terminal wires for power from the Tuxedo keypad to the (+) and (-) ‘DC OUTPUT’ terminals on the AD12612. You should also connect a black wire jumper between the (-) ‘DC OUTPUT’ terminal on your power supply and the ‘AUX -’ ECP terminal on your alarm control panel.

We also recommend the ADT Power Supply 1.2A power supply when adding an external sounder to an LYNX Touch wireless alarm control panel.  You must then program the LYNX Touch to activate the relay on each alarm. That way that the power supply drives power out to the connected sirens.
