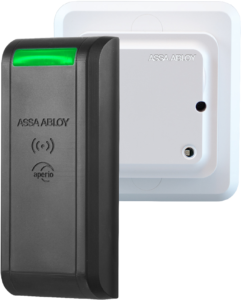

Wireless Prox Reader and Hub Description:

The Wireless Prox Reader and Hub is a surface mounted wireless reader with a pre-paired hub which offers an elegant way to extend access control to glass, stone, granite or marble entryways. Because of this, it works well especially for businesses. Furthermore, installation is easy, while requiring no drilling or pulling of wires and can also adhere in minutes. A complement to an electronic locking solution, glass entryways can now also integrate robust access control while maintaining a clean, wireless appearance.

---

PRODUCT FEATURES

• Fully-encrypted AES 128 wireless communication
• Online transaction audit trail capability
• Low battery signaling and reporting
• Suitable for outdoor use
• Up to 35,000 cycles per battery
• Green status LED indicator
• Two models are available to support low frequency or high frequency cards
  • Low frequency model supports PROX as well as EM PROX, PDK
  • High frequency model supports iCLASS,  Mifare, Desfire SE, PDK, as well as well as NFC
• Lastly, Protected by 3-Year No Fault Warranty

Technology

• Minimal field configuration for quick,easy wireless deployments that eliminate the costs and inconvenience of complex site surveys
• Fully-encrypted AES128 wireless communication between the surface mounted wireless reader and hub ensures data security
• The wireless hub connects to an access control system with Wiegand wiring plus additional tamper as well as low battery signal wires
• While the hub should be mounted within 50’of the desired lock location and through two walls or less.

SPECIFICATION DATA

» Dimensions: 4.25″ x 1.8″ x 1.0″ (108mm,x 46mm x 26mm)

» Operating Temperature: -40 to +122F (-40,to +50C)

» Compliant: FCC Part 15 and IC Compliant

» Shipping Weight: 2.83oz (80g)

» Battery: Lastly, this uses a 1 x 3V CR2 Li Battery
