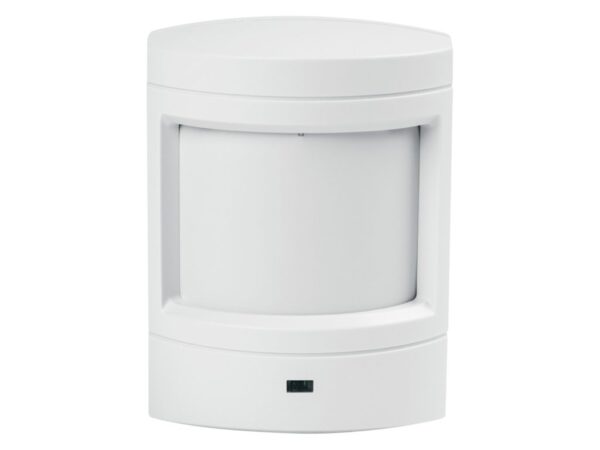

The Interlogix Wireless Motion Detector is a supervised, wireless sensor that detects intruders in large, open areas and can monitor multiple entry points. The sensor also includes a built-in tamper switch that causes an alarm, if an intruder attempts to remove the sensor from its mounted location.

With seven different lenses available, the Interlogix Wireless Motion Detector can handle virtually any motion sensor application, including curtain coverage for display windows, long-range coverage for hallways and corridors, and pet-alleys so house pets won’t trigger an alarm.

In addition, wireless technology adds flexibility to any installation, by allowing the Interlogix Wireless Motion Detector to be location anywhere protections is needed. Also, a built-in walk-test feature lets the installers verify the extent of the area protected by the sensor.

ITI’s patented Learn Move technology makes the Interlogix Wireless Motion Detector quick and easy to install. The sensor also gives a unique identifications code at the factory, elimination sensor programming. Also, like most ITI wireless sensors, the Interlogix Wireless Motion Detector sends battery and transmitter status signals to the security system”s control panel. That way, system user are reassured that the Interlogix Wireless Motion Detector is working properly.

Ds924i Motion Detector features include the following:

Reliable, state-of-the-art wireless technology
Learn Mode technology for easy installation
Wall-tamper that causes an alarm if the sensor is removed
Lithium battery that lasts 3 to 5 years

System Function

Battery   3.6 VDC, 1/2 AA lithium thionyl chloride battery
Typical battery Life   4 to 5 years
Bandwidth    24KHz
Modulation Type   Amplitude Shift Key (ASK)
Unique ID Codes   16 million
Supervisory Interval   64 minutes
Adjustable Detection Sensitivity    Standard, intermediate, or high
Coverage pattern    Also includes standard 40′ x 40′ lens (multiple lenses and masking kit available)
Circuit board   Single board design
Enclosure      high-impact ABS Plastic
Weight   4.6 oz
Dimensions     4 in (1.6cm) x 3 in (1.2cm) x 2.5 in (1cm)
Color   Belgian grey
UL Standard   UL 639
FCC Standard part 15

Mounting Location: Mount 5 to 8 feet above the floor, in a location with a reference point (such as a wall) at the end of the detection pattern.

System Programming:First place the panel in program mode (learn sensors). Then, remove the detector’s cover to activate the tamper switch to add the sensor ID code into the panel memory.

Testing: Set to walk test mode by pressing the walk test switch. Walk through the coverage area and verify detection by watching for the indicator light to turn in. Additionally, after 75 seconds of inactivity, the detector automatically returns to normal operation.
