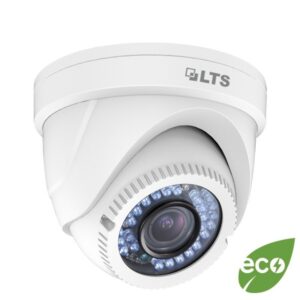

HD-TVI Turret Camera 2.1MP Description:

The HD-TVI Turret Camera 2.1MP is the perfect infrared dome camera with 1080P resolution. It uses a siamese cable for power and video. This series of cameras adopts new-generation sensors with high sensitivity and advanced circuit design technology. It also features high resolution, low image distortion, and low noise, which makes it suitable for surveillance system and image processing systems.

But if this isn’t what you’re looking for, please take a look at our other HD-TVI cameras.

Features:

• High-performance CMOS sensor
• High resolution
• Low illumination
• OSD menu, parameters are configurable
• Support auto white balance, auto gain control, electronic shutter control
• SMART IR mode
• Unit transmission control
• Advanced 3-axis design meets different installation on requirements

 Installation Steps:

1. Drill the screw holes and the cable hole on the ceiling according to the supplied drill template.
2. Push the lock button to disassemble the camera from the mounting base.
3. Fix the mounting base to the ceiling. Before you start: Cameras in some models do not support the OSD menu. For actual operation, please refer to the specification of each model.
4. Route the cables to the cable hole and connect the corresponding cables.
5. Secure the camera to the mounting base with supplied screws. Keep the word UP on the camera upright during the installation to make the image show normally.

HD-TVI Turret Camera 2.1MP Specifications:

• Brightness: Brightness refers to the brightness of the image.
• VIDEO.OUT: You can set the frame rate as 25 fps/30 fps.
• DAY/NIGHT: Color, B/W, AUTO, and EXT are selectable for DAY/NIGHT switches. Under the mode of AUTO and EXT, you can set the IR LED as Smart and CDS. If the IR LED is selected as Smart, you can set the brightness of the IR LED.
• LSC corrects the phenomenon where the image gets darkened or blurred on the periphery.
• Color Gain: Color gain adjust this feature to change the saturation of the color. You can set the value from 0 to 255.
• Color Hue: You can adjust the image HUE from 0 to 71.
• Sharpness: Sharpness determines the amount of detail that an imaging system can reproduce. You can set the value from 0 to 255.
• Contrast: Contrast enhances the difference in color and light between parts of an image. You can set the value from 0 to 255.
• Bright Off.: Bright Off. refers to the brightness compensation of the image. You can set the bright compensation value as 0 or 1.
• Mirror: You can set the Mirror status as ON/OFF.
• Flip: You can set the FLIP status as ON/OFF.
• Camera Resolution: 2.1MP / 1080P
