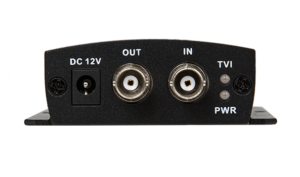

The HD-TVI to HDMI is a converter that can be used for a few reasons. The most common one is because you want to have a spot monitor, so you run the Siamese wire as a loop through this device and then you can connect an HDMI Monitor to it. It’s popular in retail and jewelry stores where they want to show potential shoplifters that they are being watched and recorded. You can also use it if you want to install one camera directly to a TV or monitor without a DVR.

HD-TVI to HDMI Features:

• HD-TVI Converter
• 1 Spot Out

Specifications:

• Physical Interface: BNC, HDMI
• Input Level: >500 mVp-p
• Input Format: 1080 p 25/30, 720 p 25/30/50/60, compatible with V2.0 HDTVI
• Output Format: HDMI 1.4b, A standard interface
• Input Auto Cable Equalization: 1080 p, 720 p, supporting 100M75-5 cable input with distance of 100M
• Input Impedance: 75 Ω
• Output Resolution: 720 p 50/60, 1080 p 50/60
• Output Format Distance: HDMI 1.4b, D-type base, 10 M distance
• Power Supply: 12 VDC, 1A
• Power Consumption: ≤ 8 W
• Working Humidity: 10 % to 90 %
• Working Temperature: -86º F to + 167º F
• Dimensions (W×D×H): 2.0 × 1.2 × 1.0″
