Product Description:

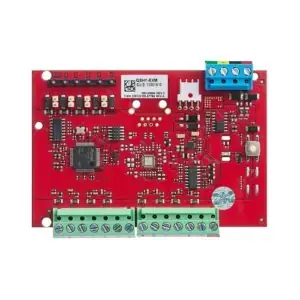

This First Alert Hardwired Relay Module enhances VISTA® H3 Hybrid Series control panels through four hardwired form-C (SPDT) relay outputs. It connects via iBus wiring terminals, providing reliable connection through supervised wiring that alerts users whenever there is a wiring cut or tampering. The security of the module increases with its tamper detection option, and it permits installation through wall surfaces and gang boxes. This system works with a 12VDC nominal input (10-14VDC), which enables efficient operation and provides battery backup support from the VISTA control panel. As a security solution, the module meets NFPA-72 requirements and needs a 2.2K ohm loop resistance and provides 400ms loop response time, making it reliable for high-security environments. The First Alert Hardwired Relay Module serves as an expansion tool for security systems by delivering improved features for professional installation environments.

But if you’re looking for more options, feel free to check our available products here in our shop.

Main Features:

• Supports normally open, normally closed, common, double balanced, zone doubling and End of line resistors types
• Physical Dimensions: 6.93”W X 5.43” H X 1.99 D or 176mm W X 138mm L X 50.5mm D
• Electrical Input Voltage: 12VDC nominal (10-14VDC)
• Electrical Input Current: 25mA standby + 20Ma per active relay
• Contact Rating: 3A max at 30VDC & #A max at 120/240VAC (Resistance Load)
• Power supply regulation on board – powered off the VISTAH3 controls power and battery backed up if panel losses AC.
• Loop Response Time = 400ms
• Required Loop Resistance = 2.2K ohm
• Operating Temperature: 32 to 122 F, 0 to 50 C
• Operating Humidity: 0-95% Max (Relative Humidity)
• NFPA-72 Compliant
