Product Description:

This ELK Alarm Engine Wireless Receiver is the best way to improve the functionality and security of your ELK security system. The receiver seamlessly integrates with ELK’s entire line of Two-Way wireless sensors, providing a reliable and comprehensive security network for your property. It connects directly to the dedicated wireless receiver connector on the E27 control board, ensuring effortless installation and setup. Equipped with LED indicators, it offers clear and immediate status updates and RF signal monitoring. This ELK Alarm Engine Wireless Receiver supports up to 128 individual wireless zones, making it suitable for even the largest properties. Operating within a robust frequency range of 902 MHz to 928 MHz ensures superior signal integrity and reduced interference. Additionally, its efficient power usage—drawing just 35mA when receiving and 85mA when transmitting to maintain energy efficiency without compromising performance.

For more Elk products, please visit our page.

Main Features:

• Compatible with ELK’s full line of Two-Way wireless sensors
• Connects to dedicated wireless receiver connector on the E27 control board
• Operating Frequency: 902 MHz to 928 MHz
• Current Draw: 35mA receiving, 85 mA transmitting

Installation Instructions:

*Before installing the wireless transceiver, TURN THE E27 MASTER POWER SWITCH OFF.

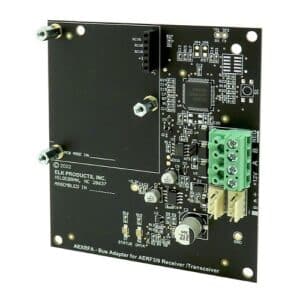

• Remove the cover from the E27 board or AEXRFA adapter and locate the 6-pin connector and 3 screw studs in the upper corner.

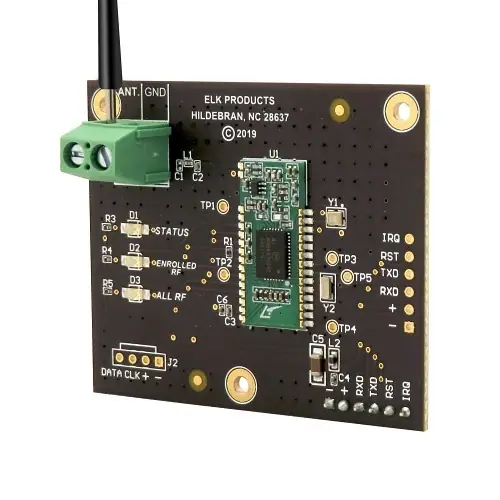

• Carefully align the 6-pin male connector in the lower right corner of the AERF9 wireless transceiver with the 6-pin female connector on the E27 board or AEXRFA adapter. Ensure AERF9 wireless transceiver is fully seated into the connector.
• Install 3 screws (provided) through the AERF9 wireless transceiver into the screw studs located on the E27 board or AEXRFA adapter (see illustration).
• The supplied antenna is intended for use when the AERF9 is installed on the E27 main board. The antenna will extend out of the top of the enclosure. Remove the antenna knockout in the top of the enclosure. Install the antenna in the ANT screw terminal located in the upper left corner of the AERF9 wireless receiver
