Product Description:

This ELK Control Panel Receiver is designed to enhance the wireless communication capabilities of your alarm system. It is compatible to accept one Alarm Engine wireless receiver/transceiver, providing seamless compatibility with both the ELK-AERF3 and ELK-AERF9 modules. Its versatile design ensures that you can easily integrate it into your existing setup without any hassle. Connecting the receiver to the data bus of the E27 control board is a straightforward process, ensuring reliable and efficient operation. This direct connection allows for smooth communication and control, making your alarm system more responsive and effective. The ELK Control Panel Receiver operates at 12 VDC, guaranteeing consistent and stable performance under various conditions. If you opt for the ELK-AERF9 module, the current draw reaches 112mA. This efficiency helps in maintaining the longevity and reliability of your alarm system.

Whether you are upgrading an existing system or setting up a new one, this receiver provides the performance and reliability you need to ensure the safety and security of your environment. For more Elk products, please visit this page.

Main Features:

• Accepts one Alarm Engine wireless receiver/transceiver
• Compatible with ELK-AERF3 or ELK-AERF9
• Connects to the data bus of the E27 control board
• Operating Power: 12 VDC
• Current draw: 27mA (board only), 79mA (with
• AERF3 installed), 112mA (with AERF9 installed)
• Board Size: 3.5″ x 3.94″ x 0.56″
• Housing Size: 4.25″ x 6.36″ x 2.13″

Receiver/Transceiver Installation:

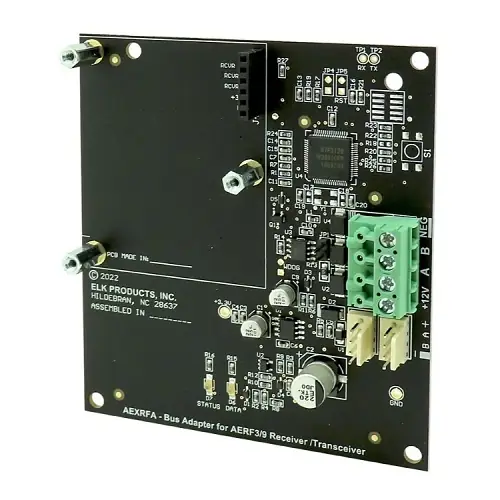

• 1. Remove the cover from the AEXRFA housing and locate the 6-pin connector and 3 screw studs in the upper left corner.
• 2. Carefully align the 6-pin male connector in the lower right corner of the AERF3 or AERF9 wireless receiver/transceiver with the 6-pin female connector on the AEXRFA board. Ensure wireless receiver/transceiver is fully seated into the connector.
• 3. Install 3 screws (provided) through the wireless receiver/transceiver into the screw studs located on the AEXRFA board (see illustration).
• 4. The AEXRFA adapter includes two offset antennas. When using the adapter with the AERF3, use the longer antenna. When using the adapter with the AERF9, use the shorter antenna. Install the appropriate antenna in the ANT terminal on the receiver/transceiver.

Please check out our YouTube Channel for more information.
