$100.00

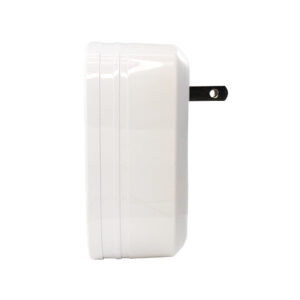

The Alarm.com Wi-Fi Bridge makes it easy to install any Alarm.com Power over Ethernet (PoE) camera by eliminating the need to run cable wiring throughout a home or business. The Wi-Fi Bridge plugs into any wall outlet and provides the PoE camera with both electrical power and secure, reliable Wi-Fi connectivity.
The Alarm.com Wi-Fi Bridge makes it easy to install any Alarm.com Power over Ethernet (PoE) camera by eliminating the need to run cable wiring throughout a home or business. The Wi-Fi Bridge plugs into any wall outlet and provides the PoE camera with both electrical power and secure, reliable Wi-Fi connectivity.
WPS To pair with a router via WPS
(Press and hold for 3 seconds)
Reset
Reset to Factory Default (press and hold 10 seconds)
LED Description
POWER
•Solid Green- Powered on
• Off – Powered off
Specifications:
• Solid Green – Wi-Fi connected
• Blinking Green – Data being sent over Wi-Fi
• Solid Red – Wi-Fi connecting or connection failed
• Blinking Red – WPS pairing process
• Off – Wi-Fi not in use
• Blinking Green – Data is being sent over data
port
• Off – No data transmission on the data port
• Blinking Green – Camera is connected to port
• Off – No camera detected on camera port
Ethernet Interface 10/100 Ethernet
Wi-Fi IEEE 802.11 b/g/n single-band WLAN
Power over Ethernet IEEE 802.3AF
Wi-Fi Security WEP, WPA, WPA2
Dimensions 3 x 4.5 x 1.7”
(75.7 x 113.5 x 43.1 mm)
