Product Description:

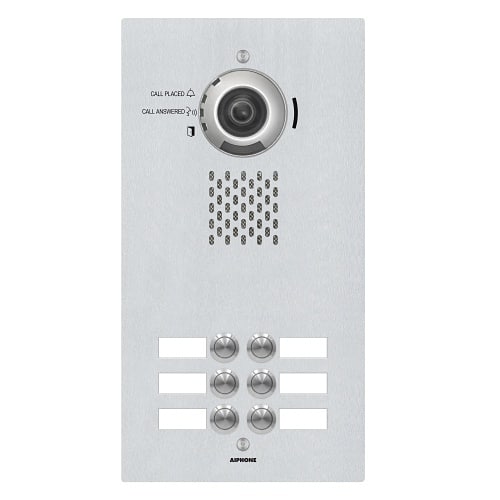

The Aiphone 6-Call Button IP Video Door Station is a professional-grade IP video door station designed for secure communication in high-traffic environments. This SIP video intercom system combines HD video, flexible call routing, and durable construction for reliable daily use. It has a built-in 1.23MP camera that helps users identify visitors quickly and accurately. It can integrates easily with VoIP platforms and third-party video systems and also supports ONVIF® Profile S for seamless connection to security cameras and VMS platforms. The station is equipped with with six clearly labeled call buttons that allows users quickly reach specific destinations. It has built-in speakers, a microphone, and multiple LED indicators for call status, communication, and door release. Custom sound files can be uploaded to provide tailored audio messages for events such as calls, door access, and system alerts.

For added security, the station supports microSD™ card storage for local l recording of communication events. Built with a stainless steel faceplate that protects the door station from harsh environments and vandalism. Its IP65 rating protects against dust and water, while the IK08 rating ensures impact resistance. Ideal for multi-tenant buildings, offices, or facilities requiring directed communication.

If you’re looking for more options, feel free to check our available intercom products and Aiphone devices here in our shop.

Main Features:

• SIP-compatible IP video door station
• 1.23MP fixed HD camera for clear video
• White LED for low-light visibility
• ONVIF® Profile S compliant
• Six programmable call buttons (label templates included)
• Built-in speaker and microphone for two-way audio
• LED indicators for call and door status
• Custom audio message support
• Two contact outputs for door control
• Weather-resistant and vandal-resistant design
• Stainless steel faceplate
• PoE (IEEE 802.3af) powered

Specifications:

• Power Source: PoE (IEEE 802.3af class 0) or 24V DC (PS‑2420UL)
• Power Draw: 5.28W
• Min Illumination: 5 lux
• Audio Codec: G.711 (μ‑law, A law), G.722
• Video Codec: H.264/AVC, motion JPEG
• Port Security: IEEE 802.1X
• Operating Temp: ‑40°~140°F (‑40°~60°C)
• Protection: IP65, IK08
• Dimensions: 13‑11/16″ H x 7‑3/16″ W
