Product Description:

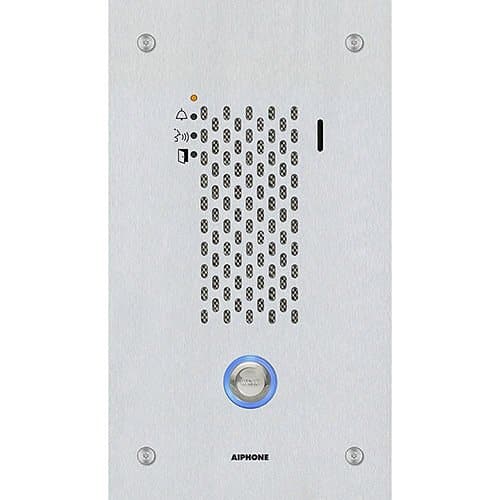

This Aiphone Flush Mount IP Audio Door Station delivers a reliable, modern solution for secure entry communication. It supports SIP 2.0, so you can integrate it with many VoIP systems or use it as a standalone device for your door station. With IP65 weather rating and IK08 vandal resistance, It provides strong resistance against daily wear, harsh weather, and physical impact. The station provides high-quality, two-way audio, supporting G.711 and G.722 codecs to ensure conversations remain clear, natural, and easy to understand. The Aiphone Flush Mount IP Audio Door Station supports SIP 2.0 that allows compatibility with a wide range of VoIP systems and the IX series. It can be programmed to call up to 20 different stations and offers three selectable call priority levels. The illuminated call button ensures visibility in low-light conditions, while LED indicators provide clear visual feedback for call status, communication activity, and door release.

For added flexibility, the unit includes two programmable contact outputs that can trigger door release or external devices, along with six trigger inputs that can initiate calls or respond to paging. It also supports custom audio functionality, allowing you to upload sound files for events such as call placement, door release, communication start, or error notifications.

If you’re looking for more options, feel free to check our available intercom products and Aiphone devices here in our shop.

Main Features:

• SIP 2. Compliant
• Illuminated call button indicator
• ADA compliant raised lettering and Braille signage
• Weather and vandal resistant (IP65)
• 2 contact outputs
• 6 trigger inputs
• Stainless steel
• 82.3af PoE compliant
• RJ45 in/out with PoE pass through (82.3at Type 2 PoE+)

Specifications:

• Power Source: PoE (IEEE 802.3af class 0) or 24V DC (PS-2420UL)
• Power Draw: 3.36W
• Audio Codec: G.711 (µ-law, A law), G.722
• Port Security: IEEE 802.1X
• UL Listed: UL 62368-1, cUL 62368-1
• Operating Temp: -40° ~ 140°F (-40° ~ 60°C)
• Ingress Protection: IP65
• Impact Protection: IK08
• Dimensions: 10-7⁄16″ H x 5-⅞” W
