Product Description:

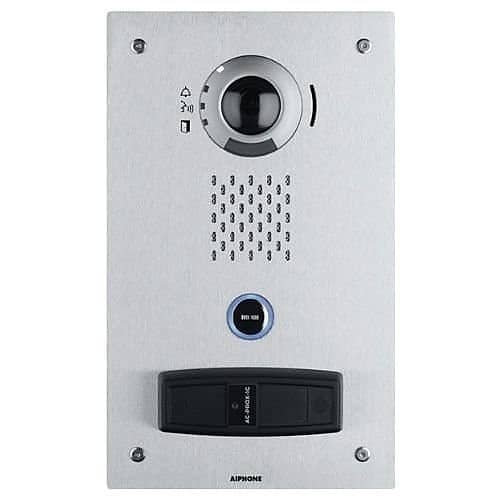

This Aiphone Flush-Mount IP Video Door Station is a high-performance access control solution that helps secure entry and visitor management. It has a vandal-resistant stainless-steel casing that protects the door station against weather and vandalism. This IP-based door station features a 1.23MP camera with low-light LED illumination, ensuring clear video even in challenging lighting conditions. It connects using Cat-5e/6 cabling with PoE support, allowing for simple installation and reliable communication. With its built-in proximity card reader, it combines intercom and access control into one efficient device. This Aiphone Flush-Mount IP Video Door Station improves both security and convenience by supporting contactless entry and real-time communication. The unit also includes flexible I/O options, allowing it to work with door releases, sensors, and other external devices. With video recording support and adjustable camera positioning, it delivers a complete and adaptable entry solution.

If you’re looking for more options, feel free to check our available intercom products and Aiphone devices here in our shop.

Main Features:

• 1.23 megapixel fixed video camera
• White LED for low-light illumination
• Camera vertical adjustment +15°, 0°, or -8° (manual)
• Built-in proximity card reader
• Flush mount with included back box
• Weather and vandal-resistant stainless-steel panel
• Slot for microSD™ card
• Two contact outputs, six trigger inputs
• 802.3af PoE
• RJ45 in/out with PoE pass through (802.3at Type 2 PoE+)

Specifications:

• Power Source: PoE (IEEE 802.3af class 0) or 24V DC (PS2420UL)
• Power Draw: 5.28W
• Min. Illumination: 5 lux
• Audio Codec: G.711 (μ-law, A law), G.722
• Port Security: IEEE 802.1X
• Operating Temperature: -31°~140°F (-35°~60°C)
• Protection: IK65
• Impact Protection: IK08
• Dimensions: 11-11/16″ H x 7″ W x 2-1/16″ D
