The ADTÂ Wireless Siren is a fully wireless siren that provides periodic status information and battery back up for an added level of performance and protection.
The Wireless Siren is a fully wireless siren that provides periodic status information and battery back up for an added level of performance and protection.
The flexible design simplifies installation, saves time, and installs in seconds at any location without the need to run wires. System status is shown on the wireless siren with three LED’s directly on the front of the unit.
This is great if you wanted to hear a siren in a different part of the home or business. It is made for the indoors, but with discretion, you could attempt to put it outdoors at your own risk. Â It takes over an entire single gang electric outlet.
The Wireless Siren contains a wireless receiver and a transmitter. It can transmit device status, tamper, low battery, or AC loss.
Features of the ADT Wireless Siren
Siren output level is 95 dB at three feet
Transmits module status, including mounting tamper, low battery and AC loss to the control panel
LED; show system status of the device
AC powered with a rechargeable 12 hour battery backup
Plugs in to any standard duplex receptacle and installs in seconds
Provides temporal pulse sounding for fire alarms
Lowers labor costs and saves time
Simplifies installation
Compatible with LYNXR (Rev 10 or higher), LynxREN, LynxRI, Lynx plus,
Lynx Touch, ADT TSSC Panel and VISTA controls that have the transceiver
Specifications
Dimensions: 4.5″ W x 7.5″ H x 2.25″ DÂ (114mm x 191mm x 57mm)
Output Level: 95 dB at three feet
 Frequency of Operation: 345 MHz
Input Voltage: 120VAC
Current: 202mA Typical
Operational Temperature 32° F to 122° F (0° to 50°C)
Installation Instructions
Just like other security devices, this has two parts to the installation; the first is the physical installation and the second is the programming. This device can only be programmed by us or by an ADT Technician. We will only charge $75 or less to program it for you and we can do it remotely. Below are the physical installation instructions. The programming change that needs to take place is to change/enable the House ID#.

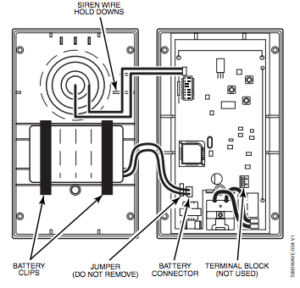

Remove the four screws from the back of the unit
Separate the case from the back
Check that the standby battery is held securely in place
Plug the battery into the PCB connector
Set the DIP switches to a house ID# that matches the house id# in programming
Close the case and put the four screws back in place
Remove the screw and leave the AC Outlet wall plate from the AC Outlet where you want the siren to be mounted. (Yes it takes over an entire outlet)
Plug the ADT Wireless Siren into the AC Outlet
If the red LED turns on, the wireless signal is bad (probably too far away or not the same House ID#) Move it closer to the TS Base Station or Panel.
Insert the hold down screw
When the yellow LED turns off, arm the system and verify that the red LED turns on. Then disarm the system
Put your alarm system in test mode, then set off the alarm and verify the new ADT Wireless Siren is working
Additional Steps
If you want to enable the supervision for the ADT Wireless Siren, follow these additional steps. It will alert you if there are any changes in wireless signal strength, check-in periodically, alert you if the battery is getting low, if the AC power is out, and if someone tries to remove it from the outlet.
Locate the serial number (7 digit number)
Tell us what the serial number is so we can use it to program the siren’s supervision remotely
We will then program the supervision (zone type 5, input type 3, and loop number 1
Mount the Magnet to the wall, adjacent to the case, between the tamper position indicator lines.
Test the tamper by removing the siren from the outlet and see if the panel indicates a tamper
