ADT Command Doorbell Description

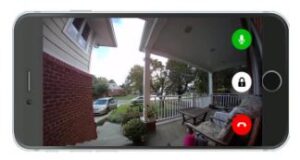

The ADT Command Doorbell is a wireless HD Doorbell Camera that connects to your ADT Command System. It delivers 720P HD Resolution to your smartphone, tablet, or ADT Control Portal so you can see who is at your door. It can work with analog or digital chime doorbells. Also, it is easy to install and replace your existing doorbell button. If you do not have an existing doorbell and chime and do not want to get one you can also use this ADT Camera power supply. If you still want to hear a chime or sound inside the house when the doorbell is rung, you can get one or two of these ADT doorbell chimes.

Key Features

• Control the security system from one app including device control
• Live real-time conversation.
• High-Quality HD video including De-warping for full video viewing
• Fully integrates with alerts, automation, schedules, and modes
• Reduces false motion events: combines analytic detection of people, cars, animals, and other objects and pairs it with other motion data (PIR and pixels) to decide if the event was true or not.
• Includes wedge kit
• Always on kit available for cold weather climates
• PowerKit is required if connecting to an existing digital Doorbell

Installation Instructions

In order to install the doorbell, you will first need to have an existing doorbell with a button and two wires outside your home. The voltage needs to be within 8-24AC Voltage. The operation temperature is -4°F to 122°F. The battery will not be charged when the temperature is less than 32°F. It comes with two mounting plates that you can choose from just in case you have a single gang box behind your doorbell.

1. In order to add the camera to Command, you will need to power up the camera and wait for the LED to turn flashing red.
2. Log into your Portal and go to System and then Manage Devices and click on the cameras box
3. Click add using WPS
4. Enter in the WPS Pin number and then push the doorbell button (it will start flashing green)
5. It should enroll within 2 minutes and then you can name it and test it.

If it has a hard time connecting to the wifi that your system is putting out you might need to add a wifi range extender. (if you do not have one already)

Note:

Only compatible with the ADT Command System Not compatible with the Safewatch Pro,  Quickconnect,  DSC Impassa, or any other ADT security panel.
