2GIG Takeover Module – Super Switch

(1 customer review)

$80.00

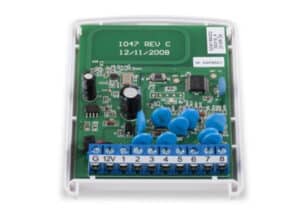

Convert up to eight hardwired zones into wireless frequencies with the 2GIG Takeover Module – Super switch.  This switch mounts next to an existing control box containing the connected hardwired zones to be converted to wireless frequencies. Then, upon wiring the zones to the Super Switch the takeover module will now wirelessly communicate the connected devices to a 2GIG security Control Panel.

Additionally, this switch is capable of transmitting a wireless RF signal up to 350 feet away in open air. This is also important to ensure the Super Switch is being mounted in range of the control panel. Users should also note that wireless transmission ranges will vary depending upon obstructions between the Super Switch and control panel.

But if this isn’t what you’re look for, please look at our other 2GIG products.

SKU: 1342 Category:
Description

Convert up to eight hardwired zones into wireless frequencies with the 2GIG Takeover Module – Super switch.  This switch mounts next to an existing control box containing the connected hardwired zones to be converted to wireless frequencies. Then, upon wiring the zones to the Super Switch the takeover module will now wirelessly communicate the connected devices to a 2GIG Security Control Panel.

Additionally, this switch is capable of transmitting a wireless RF signal up to 350 feet away in open air. This is also important to ensure the Super Switch is being mounted in range of the control panel. Users should also note that wireless transmission ranges will vary depending upon obstructions between the Super Switch and control panel.

But if this isn’t what you’re look for, please look at our other 2GIG products.

Features:
  • Converts hardwire zones to wireless frequency
  • Also converts 8 zones per module (additional modules may also be added)
  • Integrates with 12-Volt panels
  • Easily connects to existing control panel’s battery
  • Provides power backup through existing hardwire panel
Specifications:
  • Dimensions: L 3.54 inches x W 2.56 inches x H 1.13 inches
  • Weight: 2.85oz
  • Wireless RF Signal Range: 350 feet in open air
  • Code Outputs: For each of the 8 serialized zones: fault, restore, tamper (learn mode), low battery
  • Frequency: 345.00 MHz (crystal controlled)
  • Frequency Tolerance: +/- 15 kHz
  • Bandwidth: 24 kHz
  • Modulation Type: Amplitude shift keying-on/off keying
  • Unique ID Codes: Over 1 million different code combinations
  • Supervisory Interval: 70 minutes
  • Peak Field Strength: Typical 50,000 uV/m at 3m
  • Operating Temperature: 32° – 120°F (0° – 49°C)
  • Relative Humidity: 15-90% non-condensing
  • Operating Voltage: 9-16 volts DC, 50mA
  • Regulatory Listing: ETL, FCC Part 15, Industry Canada
  • Manufacturer Warranty: 2 years
