Web Based 4 Door Access Controller Description:

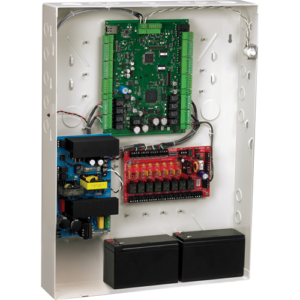

The Web Based 4 Door Access Controller consists of a panel control board and battery. The components are enclosed in a pre-wired cabinet. The 16.5 VAC power supply provides power for the panel control board, which is a four-reader panel providing access control for up to four doors. Unlike a browser based access control unit, this system requires an application be downloaded on every workstation or computer where you want to utilize the software. As a result, a physical icon is installed on each desktop on every computer. However doing so provides sustainable and reliable usage for each location. Compatible with Honeywell products. Also available with or without power supply as shown below.

Additional Info:

Furthermore, it controls each door providing up to 14 inputs and 8 outputs. The panel works as a stand-alone panel with independent card and transaction storage or, with a host software upgrade, as a fully monitored online access control device. Fourteen inputs are capable of four state supervision: Normal, Alarm, Short and Open. It uses Eight inputs as door control while one input works for request to exit on each door and one input used for door status on each door. We also supply Supervised inputs for Tamper, External Power Fail and four Reader Tampers as well. Furthermore, they work as additional inputs when not required for their default purpose.

Technical Specifications:

• Four relays: 10 A @ 28 VDC resistive load, 5 A @ 28 VDC inductive load
• Maximum current for any of the four reader outputs: 600 mA.
• Panel Dimensions Width: 8 inches (203.2 mm), Length: 9.75 inches (247.65 mm), Height: 1.5 inches (38.1 mm)
• Panel Weight: 1.1 pounds (0.5 kg)
• Enclosure Dimension: Width: 14.5 inches (368.3 mm), Length: 18.0 inches (457.2 mm), Height: 4.4 inches (111.8 mm)
• Enclosure Weight, including 7 A-Hr battery: 22.1 pounds (10 kg)
