Product Description:

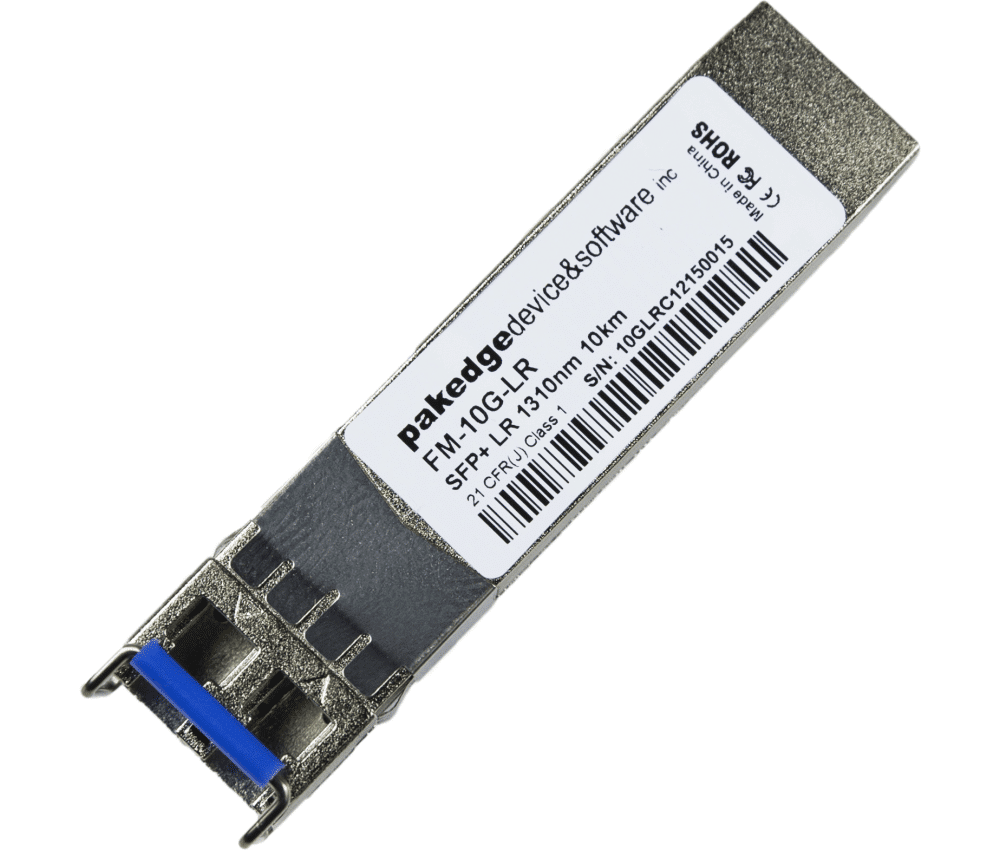

This Pakedge Long Reach Single Mode Fiber Module is an SFP+ transceiver offering a long-range, high-bandwidth connection perfect for enterprise and commercial networking. It supports data rates of up to 11.3 Gbps, which features a 1310nm DFB transmitter and enables reliable communication over single-mode fiber (SMF) at distances of up to 10 kilometers. The module operates on a single 3.3V power supply with a TTL logic interface, offering energy-efficient performance. Its duplex LC connector interface allows for easy integration, while the hot-pluggable design ensures quick, disruption-free installation or replacement. Fully compliant with the SFP+ MSA Specification SFF-8431 and SFF-8472, the Pakedge Long Reach Single Mode Fiber Module is ideal for long-distance high-bandwidth connections, inter-building uplinks, and high-speed server or NAS connectivity, making it a reliable and scalable solution for demanding network infrastructures.

Having an operating temperature of (-) 0°C to +70°C, the module is well-suited for standard operating conditions. But if you’re looking for more options, feel free to check our available Networking devices here in our shop.

Main Features:

• Operating data rate up to 11.3 Gbps
• 1310nm DFB Transmitter
• Distance of up to 10km over SMF
• Single 3.3V Power supply and TTL Logic Interface
• Supports DDM
• Duplex LC Connector Interface
• Operating Case Temperature Standard: 0°C~+70°C
• Hot Pluggable
• Compliant with SFP+ MSA Specification SFF-8431
• Compliant with SFF-8472

Applications:

• Long-distance high-bandwidth connections
• Inter-Building uplink
• Very high bandwidth Server /NAS connectivity
