Product Description:

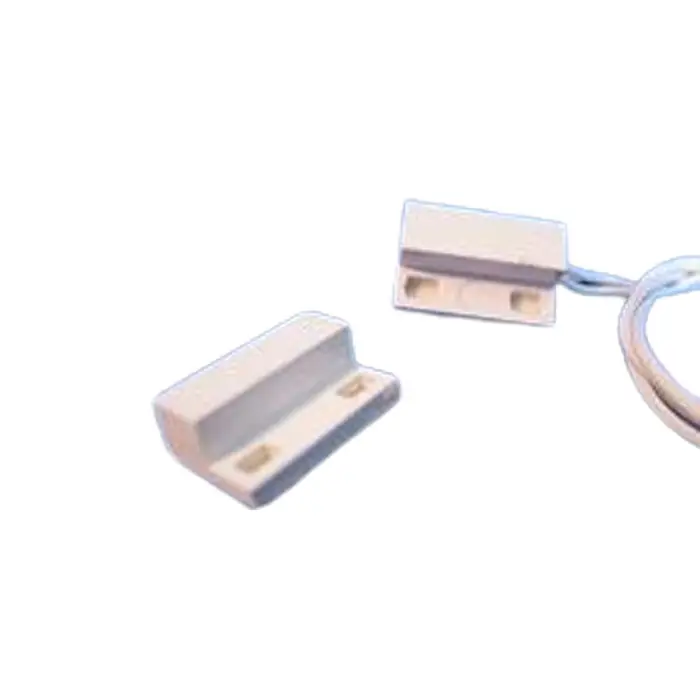

This Mini Stick-on Surface Mount Contact comes equipped with leads and screw holes, providing multiple installation options to suit your specific needs. It offers extended connectivity options, with 18″ long side wire leads providing flexibility during installation, allowing you to position the sensor precisely where needed without limitations. The sensor is purpose-built for integration into alarm systems, providing reliable and instant alerts upon unauthorized entry or intrusion attempts through doors or windows. With a convenient flange design, it enhances stability and ensures a secure and reliable fit on diverse surfaces. The Mini Stick-on Surface Mount Contact employs a closed-loop technology that ensures seamless detection and precise signaling when a door or window is opened or closed.

But if this sensor isn’t quite what you’re looking for, take a look at our available hardwired contacts here in our shop.

Main Features:

• Has leads/screw holes
• Has double stick tape
• Closed loop technology
• Typically used for alarm system door or window detection
• Flange for Convenient Mounting
• 18″ Long Side Wire Leads
• Operate Gap Min. ½” (12.0mm)

Switch Specifications:

• Contact Rating: 10W/A Switching Voltage (Max.): 200VDC
• Switching Current (Max.): 0.5 Amp.
• Life Expectancy: 10x 10.6
• Shock Resistance: 30G for 11 msec.
• Vibration Resistance: 20G (10 to 1000Hz)
• Magnets: Alinco/Rare Earth (Unless otherwise specified)
• Armour jacket: Stainless Steel (type 304)
• Plastic Material: ABS Plastic
