Product Description:

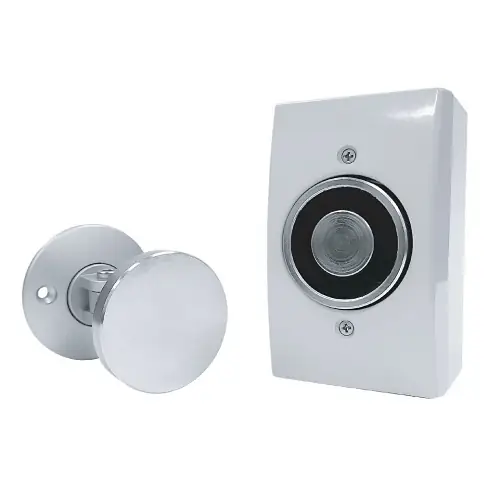

This Magnetic Door Holder is a reliable and versatile solution for controlling door release in commercial, public, and industrial spaces. This UL-listed device features a fail-safe design with tri-volt operation, supporting 12V and 24V (AC/DC) and 120V AC power sources. Its adjustable armature plate ensures precise door alignment, while its strong holding force of up to 35 lbs. (16 kg) securely holds doors in place. With flexible surface or flush mounting options and all necessary hardware included, installation is straightforward and adaptable. The Magnetic Door Holder is energy efficient, drawing as little as 30mA, depending on voltage, and offers optional extension bars for added customization. It is ideal for high-traffic environments that demand dependable door control like offices, schools, hospitals, and apartments.

But if you’re looking for more options, feel free to check our available devices here in our shop.

Main Features:

• Surface or flush mounting options
• Multiple voltages: 12/24V, AC/DC, 120V AC
• 35 lbs (16kg) holding force
• Current Draw: 52mA 12VAC, 60mA 12VDC, 27mA 24VAC, 31mA 24VDC, 24mA 120VAC
• Armature plate adjusts to door alignment
• Used for door release in public, industrial and commercial applications
• Optional extension bars available: Extension Bar

Product Specifications:

• Flush Mount Dimensions (W x L x D):
  • 2-3/4” x 4-5/8” x 1-3/4”
  • (70mm x 116mm x 44mm)
• Surface Mount Dimensions (W x L x D):
  • 2-3/4” x 4-5/8” x 2-1/2”
  • (70mm x 116mm x 62mm)
• Armature Dimensions (W x L x D):
  • 2-9/16” x 2-9/16” x 2-7/8”
  • (65mm x 65mm x 74mm)
• Operating Voltage:
  • 12 VAC/VDC, 24 VAC/VDC, 120 VAC
