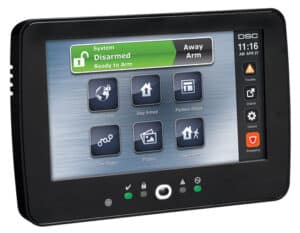

DSC Neo Touchscreen Keypad with Prox

$299.00

The DSC Neo Touchscreen Keypad  stands out for its ease of installation, simplistic programming, and also user-friendly interfaces. Additionally, this keypad is packaged in a clean, low-profile case in either white or black to easily blend into any décor.

This touchscreen’s display can also be easily customized for the user.  The clutter-free home screen can be easily modified later by the installer through password-protected setting menus. The background of the home screen can also be easily customized  to display contact information, pictures, etc.

Clear
SKU: 1764 Categories: ,
Description

The DSC Neo Touchscreen Keypad  stands out for its ease of installation, simplistic programming, and also user-friendly interfaces. Additionally, this keypad is packaged in a clean, low-profile case in either white or black to easily blend into any décor.

This touchscreen’s display can also be easily customized for the user.  The clutter-free home screen can be easily modified later by the installer through password-protected setting menus. The background of the home screen can also be easily customized  to display contact information, pictures, etc.

Additionally, the integrated digital picture frame gives homeowners the flexibility to display photos as a single photo or a timed slideshow or default background screen. Just insert an updated standard SD card into the SD slot and follow the onscreen prompts.

The sleek profile and contemporary design also adds a modern touch and comes in either white or black to seamlessly blend into your home.

Features:
  • Responsive, high-resolution 7” (177.8 mm) full color touchscreen
  • Intuitive menu-driven interface for the user Configurable home screen
  • Built-in and easy-to-update digital picture frame using integrated SD card slot
  • Simplified programing of labels using QWERTY keypad
  • Clean, low-profile case in either white or also black blends into any décor
  • Quick-view LED status indicators (Ready, Armed, Trouble and AC Power)
  • Interactive Menu ready
  • I/O terminal
  • SD card GUI Local firmware update using SD card
  • Prox support (using MPT prox tags)
  • Multiple language support
  • Available in white or black
  • Approval Listings: FCC/IC, UL/ULC, SIA CP-01, CSFM
Specifications:
  • Specifications TouchScreen display: 8.5″ x 5.1″ x 0.8″
  • Viewing angle: Horizontal viewing angle: 70° (typ.)
  • Vertical viewing angle: 50° (top), 70° (bottom) (typ.)
  • Optimal viewing quality (resolution): 800 x 480
  • Input voltage: 12 VDC
  • Brightness: 280 cd/m2
  • Current draw: 100 mA standby
  • Voltage rating: 7Vdc to 14Vdc nominal
  • Plastic enclosure protection degree: IP30, IK04 (TouchScreen excluded)
  • Up to 16 keypads per system
  • Connects to control panel via 4-wire Keybus
  • Ready (Green LED), Armed (Red LED), Trouble (Yellow LED), AC (Green LED)
  • Wall mount tamper
  • 5 programmable function keys
  • Wiring: Standard four-wire connection Display
  • language: versions include: English, French, Spanish, and also Portuguese
  • Compatibility: PowerSeries Neo v1.11 +

Compatible with DSC Powerseries Neo.

Additional Information
Colors

Black, White
