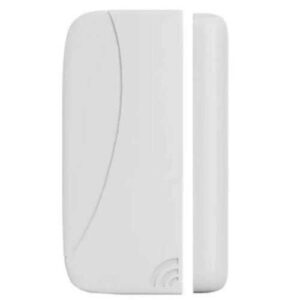

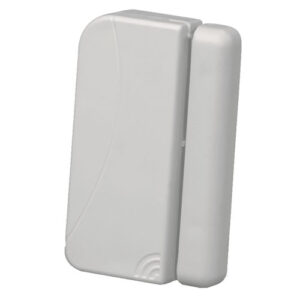

The DSC Compatible NanoMax Door Window Sensor is fully compatible with all DSC wireless capable alarm systems but offers its own unique features. The sensor is tiny at only 1.8 x 0.77 x 0.39 inches, making it one of the smallest sensors available. But it transmits at the full allowed power to ensure great range and coverage.

Additionally, even at this compact size, a set of inputs inside the case can connect an external magnetic sensor or other normally closed contact. So, you can get creative. In addition, when you use this external input, it overrides the internal reed switch and magnet so only one or the other can be used.

DSC Compatible NanoMax Door Window Sensor Features:

• Senses things that open or separate
• Magnet and Internal reed switch operation
• 1-inch magnet gap
• External Contact
• Cover tamper
• Strong, reliable RF signal
• 6+ year battery life on battery
• Low Battery indication

Key Instructions

• Battery “+” faces up
• Enrolling:
  1. Place control panel in Learn Sensor Mode
  2. Then open cover to tamper device, or tamper enrollment signal can be sent by touching a magnet to the sensor 5 times within 5 seconds

Specifications:

• Magnet trip distance: 1 inch nominal
• Mounting fastener: 3M VHB (Very High Bond) Tape
• Temperature Range: 0F to 120F
• Housing dimensions: 1.8 x .77 x .39 inches
• Specifications subject to change without notice
