Doube Door Surface Mounted Electric Strike

(1 customer review)

$1,560.00

This Doube Door Surface Mounted Electric Strike is a new model optimally suitable for double doors provided with tubular, vertical rod exit devices. The electric strike offers simplified retro-mounted installation within the existing mechanical prep to provide fast and easy installation. It is purposely configured to fit the new construction doors and can be installed into the existing mechanical prep without the need for cutting the door frame. The other impressive feature of the circuit is the voltage sensing technology that is variable and requires no physical switch for voltage selection, as it will work with 12 VDC/VAC.

Clear
SKU: N/A Category:
Description

Product Description:

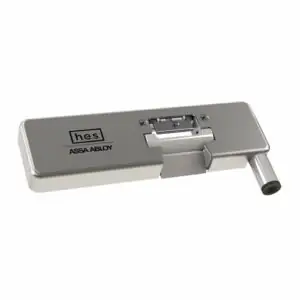

This Doube Door Surface Mounted Electric Strike is a new model optimally suitable for double doors provided with tubular, vertical rod exit devices. The electric strike offers simplified retro-mounted installation within the existing mechanical prep to provide fast and easy installation. It is purposely configured to fit the new construction doors and can be installed into the existing mechanical prep without the need for cutting the door frame. The other impressive feature of the circuit is the voltage sensing technology that is variable and requires no physical switch for voltage selection, as it will work with 12 VDC/VAC. Also, the strike features Fail Safe/Fail Secure Functionality that provides maximum versatility in security management. It is designed for minimal noise during operation. Constructed from stainless steel, the strike meets Grade 1 standards with a static strength of 1,500 lbs and dynamic strength of up to 70 ft lbs.

This Doube Door Surface Mounted Electric Strike is available in two variations: 4-5/8″ and 8-3/8″. Certified to ANSI/BHMA A156.31 Grade 1, UL 1034 Burglary-Resistant Listed, UL 294 Listed, UL 305 Listed, and RoHS compliant. If you are looking for more electric strike products for your access control system. Feel free to browse here in our shop.

Main Features:
  • Retro-mount using existing header prep
  • No cutting required
  • Integrated adjustability
  • Adaptable voltage sensing technology (12-24 VDC)
  • Static strength 1,500 lbs
  • Dynamic strength to 70 ft-lbs
  • Endurance 1 million cycles
  • Field selectable fail secure/fail safe
Specifications:
  • Electrical (DC Continuous Duty)
    • Operating Voltage (12- 24 VDC/VAC)
    • 480 mA at 12 VDC, 240 mA at 24 VDC
  • Frame Application:
    • Aluminum
    • Hollow Metal
    • Wood (additional mounting hardware required)

Dimension:

  • 8-3/8″: [330.2mm] x [212.7 mm] x [28.6mm] x [46.9mm] x [15.9mm]
  • 4-5/8″: [330.2mm] x [117.5mm] x [28.6mm] x [46.9mm] x [15.9mm]

Doube Door Surface Mounted Electric Strike

Doube Door Surface Mounted Electric Strike

Please check out our YouTube Channel for more information.

Additional Information
Spacing

8-3/8", 4-5/8"

Reviews (1)

1 review for Doube Door Surface Mounted Electric Strike

  1. Ryndell Manuel (store manager)

    The performance is reliable, and it’s a great addition to our office security setup! Highly recommended!
