Product Description:

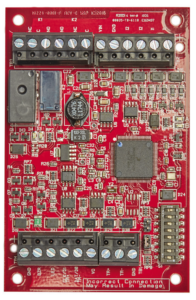

This Alarm.com Single Reader Expansion Module is set up for use on businesses ranging from small to large commercial properties. The single reader has one reader input, two-relay outputs, and two-programmable inputs for the system’s power connection. It is usually used for door controllers like Alarm.com 1 Door Controller which provides an easy and great user experience. The expansion module communicates with the intelligent panel through the RS-485 port. RS-485 is used for this type of expansion module which defines the electrical interface and physical layer for point-to-point communication of electrical devices. Users will also experience smart access control benefits that will provide more efficiency and manage users using the Alarm.com app. This Alarm.com Single Reader Expansion Module is designed to add one extra reader to an Alarm.com door controller.

And if you’re still not sure about this product, You can check out this Alarm.com Two Reader Expansion Module that offers 2 additional Weigand readers and door control hardware.

Main Features:

• Provides all I/O needed for a single door using one reader
• One reader input
• Two relay outputs
• Two programmable inputs
• For use with Alarm.com Door Controllers

Additional Smart Access Control Benefits:

• Scan-to-add card format and serial detection
• Control doors and manage users from the Alarm.com app
• Integrated with Alarm.com intrusion and video offerings
• User-friendly, flexible scheduling
• Configure hardware using the web or app for easy installation
• Plug & play installation—no networking expertise required
