Product Description:

These 1200lb Single-Door Electromagnetic Locks are high-performance locking mechanisms designed to secure single doors with a strong holding force of up to 1,200 lbs. It is ideal for a variety of security applications and reliable protection with advanced features and flexible installation options. The lock complies with UL standards for access control, burglary resistance, and fire alarm systems to ensure high safety and quality standards. The locks operate on a selectable voltage of 12/24VDC to seamlessly integrate with various power systems. It is equipped with MOV surge protection to shield the lock from voltage spikes. The 1200lb Single-Door Electromagnetic Locks are protected with anodized aluminum housing that offers a durable exterior and detachable faceplate. An adjustable mounting bracket allows for versatile installation options, and the package includes complete mounting hardware for typical installations.

The other variant model features a bond sensor and status LED to indicate the locking status. But if this maglock isn’t the one you are looking for, Feel free to browse and look in our available maglocks for your access control system.

Main Features:

• Multiple UL listings (see chart below)
• 12/24VDC Selectable
• MOV Surge protection
• Anodized aluminum housing (US 28)*
• Detachable faceplate
• Adjustable mounting bracket
• Complete mounting hardware for typical installations
• L-brackets and Z-brackets available for easy mounting

Specifications:

• Holding force: 1,200 lb (545kg)
• Operating voltage: 12/24 VDC (selectable)
• Operating temperature: 32°~120° F (0°~49° C)
• Weight: 11 lb (5kg)
• Timer: No

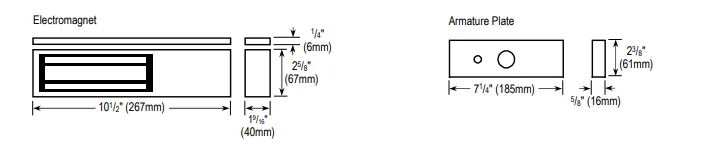

Dimension:
