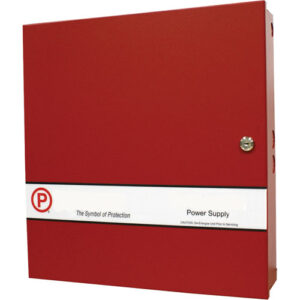

10 Amp Hybrid Intelligent Power Supply Description:

The 10 Amp Hybrid Intelligent Power Supply is a UL listed intelligent 10 amp notification power supply and P-Link repeater. The power supply connects to the P-Link bus from the control panel and is operated and supervised from the panel. The power supply may be installed 6,500 feet from the control panel. The supply then repeats the P-Link communication for another 6,500 feet. The power supply also has six (6) Class B or three (3) Class A power outputs. Each output regulates and powers with a limited 3 Amp maximum rating. In addition, the supply has two (2) programmable dry contact inputs. The dry contact inputs are Class B, supervised inputs.

Additionally, The Power Supply allows the expansion of the IP Enabled Hybrid Fire Alarm Control Panel. Furthermore, the Large 10 Amp Hybrid Intelligent Power Supply has space to allow the installation of up to six expansion cards. The cards mount on a stacker bracket that allows access to all circuit connections.

Additional Info:

Each output independently configures to provide one of four synchronization patterns, constant power, ANSI temporal Code 3 or Door Holder power. Using patented Quadrasync technology, the panel configures to synchronize Potter/AMSECO®, Gentex®, Cooper Wheelock® as well as System Sensor®.

Lastly, The power supply operates on either 120 or 220 VAC power and has a regulated 24 VDC output. In addition, the panel can charge up to 55 AH batteries and will house 18 AH batteries.

Features:

• 10 Amp Power Supply
• 3 Amps, regulated per NAC
• 6 NACs Class B or 3 NACs Class A
• 2 dry contact inputs
• Fully programmable and monitored through control panel
• Isolated P-Link repeater connection, Class A or B
• Up to 31 power supplies per control panel with system wide sync
• Quadrasync feature synchronizes strobes from Potter/AMSECO, Gentex, Cooper-Wheelock and System Sensor.
• Electrical Specs:
• 120/240 VAC Input at 50/60 HZ
• 5.1 Amps/3.0 Amps max draw
• Standby Current 60 mA
• Alarm Current 200 mA
