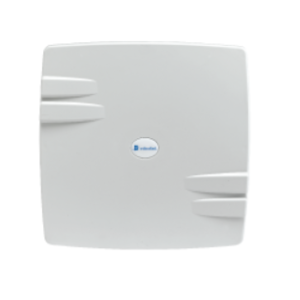

The Videofied Outdoor Panel is great for securing outdoor and large commercial applications that have adequate cellular reception or an Ethernet/IP connection available. With integrated high-gain RF and cellular antennas, this panel is also perfect for protecting outdoor storage lots, critical infrastructure, remote sites and large warehouses. When battery-powered and communicating over cell, the Videofied system is completely portable and you can move it to new locations (construction sites, vacant homes, storage lots) as the security needs change.

Additionally, this panel is rated for extreme temperatures. It also comes in an waterproof NEMA case with mounting brackets (for poles, corners and walls).

Specifications:

• alphanumeric keypad or the Frontel Installer Software (with the TMT USB Programming Kit) required for programming and maintenance
• Communication to devices: 915 MHz RF (military grade)
• RF range: to 500 ft (varies by property type and environment)
• Communication to central station: Cellular or Ethernet (Dynamic or Static) with cellular backup
• PP1 (4 D-Cell Lithium batteries) or PP4 (12V DC power supply with backup Alkaline batteries
• Operating temperature range: -20/+140°F (-30/+60°C)
• Wireless zones: 24
• Wired inputs: 3 programmable (i.e. hardwired zones), 2 arming
• Arming modes: 3 (stay, away, perimeter)
• Partitions: 2
• Arming options: Alpha keypad , Prox Tag Arming Station Remote , schedule, VideoApp4All or other smartphone app (conditional, see Notes), existing burglar alarm panel relay trigger to Videofied arming inputs (when panel is in Xtender mode)
• User/access codes: 20 (19 users, 1 installer)
