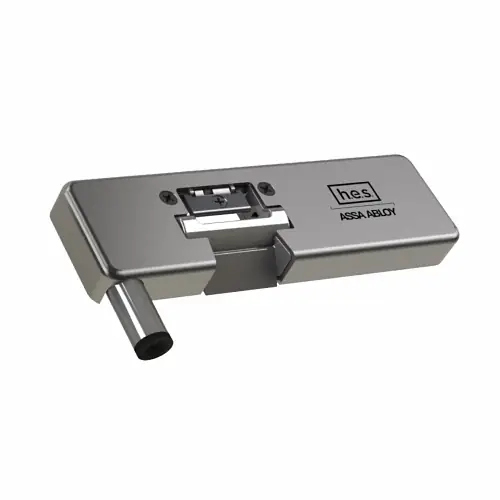

Single Door Electric Strike
$795.00 – $835.00
This Single Door Electric Strike is an innovative electric strike that is specialized to open single doors with tubular, vertical rod exit devices. Equipped with versatile voltage sensing, the device functions in the network of 12-24 VDC/VAC with no need for wiring selection. Aimed at high performance it has splined shafts with a static capability of 1,500 lbs dynamic capability of 70 ft-lbs and endurance of 1 million cycles. This means that the construction is made out of stainless steel, which makes the operation of the appliances rather noiseless and it conforms to Grade 1.
Description
Product Description:
This Single Door Electric Strike is an innovative electric strike that is specialized to open single doors with tubular, vertical rod exit devices. Equipped with versatile voltage sensing, the device functions in the network of 12-24 VDC/VAC with no need for wiring selection. Aimed at high performance it has splined shafts with a static capability of 1,500 lbs dynamic capability of 70 ft-lbs and endurance of 1 million cycles. This means that the construction is made out of stainless steel, which makes the operation of the appliances rather noiseless and it conforms to Grade 1. Certifications include ANSI/BHMA A156. 31 Grade 1, UL 1034 Burglary-Resistant Listed for outdoor use, UL 294, UL 305, and RoHS. In addition, the Single Door Electric Strike offers fail safe/fail secure selection from the field, and configurable/field-installable monitoring, to make it highly usable. Optional features include left or right-handed configurations.
Designed for aluminum, hollow metal, and wood frames with optional hardware, this is a half-inch strike with 240 mA 12VDC/ 120 mA 24VDC. If you are looking for more electric strike products for your access control system. Feel free to browse here in our shop.
Main Features:
- Retro-mount using existing header prep
- No cutting required
- Integrated adjustability
- Stainless steel construction
- Adaptable voltage sensing technology (12-24 VDC)
- Factory-configured or field-installable monitoring
- Static strength 1,500 lbs
- Dynamic strength to 70 ft lbs
- Quiet operation
- Field selectable fail secure/fail safe
Specifications:
- Frame Application:
- Aluminum
- Hollow Metal
- Wood (additional mounting hardware required)
- Electrical (DC Continuous Duty)
- Operating Voltage (12-24 VDC/VAC)
- 240 mA at 12 VDC, 120 mA at 24 VDC
Dimension:
Please check out our YouTube Channel for more information.
