Product Description:

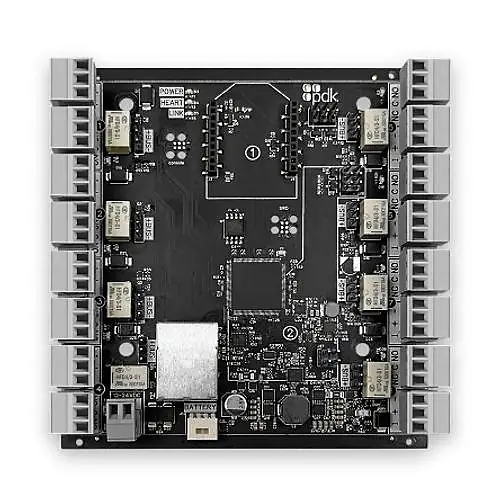

This ProdataKey High-Security 8-Port Auxiliary Board is designed to enhance the scalability and customization of your PDK Red Max system. This easy-to-install input/output board handles a wide range of auxiliary devices, providing full control and monitoring capabilities for up to eight different devices, including door position sensors, push buttons, and motion detectors. It has a feature that monitors input, output, battery voltage, and overall controller health. It is self-discoverable, automatically connecting to the Cloud Node upon Ethernet cable connection, eliminating the need for manual IP address entry and simplifying setup. Optional WiMAC and PoE++ plug-and-play connection kits can enhance the Aux 8 board’s functionality. The board features plug-and-play connectivity, making it simple to add devices regardless of the project size. The onboard relays allow for system event triggers such as elevator floor access, arming and disarming alarm panels, and controlling HVAC systems.

This ProdataKey High-Security 8-Port Auxiliary Board includes removable screw-down terminals, a built-in power supply, and industrial-grade 2A Form-C relays (8). It is compatible with any Red enclosure and conforms to UL 294 standards. The board requires a 12V-24V DC input and can power door hardware directly from the bus. If you’re looking for more PDK products for your access control system, Feel free to browse our available ProdataKey components here in our shop.

Main Features:

• Input Monitoring
• Power Monitoring
• Plug-and-play connectivity
• Output Triggering
• Self Discoverable
• Module Kits

Specifications:

• Power: 12V-24V DC Input Board powers door hardware directly from the bus.
  • *12V 12ah backup battery not included, but must be installed to comply with UL 294.
  • * Power supplies included with purchase of Red Max Controller
• Removable Screw-down Terminals
• Industrial-grade 2A Form-C Relays (8)
• Inputs (8)
• Communication Options:
  • Ethernet
  • WiMAC™ Wireless (2.4 GHz/ 802.15.4)
  • PoE++
  • Encryption: 128bit
  • Wireless Range: 1 Mile LoS, 450ft indoor average
• Temperature: -4° ~ +140° F /-20° ~ +60° C
• Humidity: 0 – 95% relative humidity non-condensing
