Product Description:

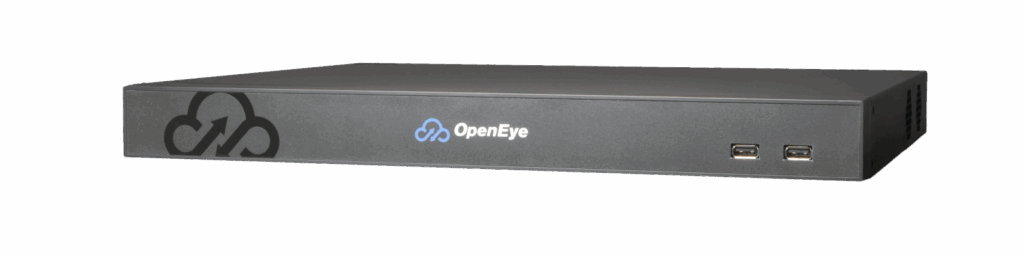

This OpenEye Cloud-Managed Hybrid Analog Recorder supports up to 16 analog cameras using BNC connections, including HD-TVI, AHD, HD-CVI, and even traditional CVBS formats. It offers hybrid flexibility, letting you expand up to 24 total channels by adding IP cameras. If you’re managing a small business or overseeing multiple locations, this makes it easy with cloud-based control through OpenEye Web Services (OWS). Users can remotely view live footage, search recordings, update settings, and monitor system health right from their desktop or mobile device. This recorder delivers solid performance with a 150Mbps recording rate and supports video resolutions up to 8MP. It includes smart motion detection with customizable settings, and even supports AI-powered smart motion channels for more accurate alerts (with additional licensing). With HDMI and VGA outputs, you can connect it to your monitors easily, and the system is backed by dual Gigabit Ethernet ports for smooth networking.

For backup and storage, the OpenEye Cloud-Managed Hybrid Analog Recorder includes two internal drive bays that support up to 40TB of video, plus options to save to USB, network drives, or the cloud. It’s also NDAA compliant, energy efficient, and built to run in environments up to 140°F. For more options, check out our OpenEye Cameras and NVRs here in our shop that are perfect for your surveillance needs.

Main Features:

• 16 Analog Channels
• Hybrid Channel Support
• Cloud-Managed Operation
• Smart Motion Detection
• Dual HDMI/VGA Outputs
• Storage Flexibility
• Alarm I/O Integration
• Backup Options

Specifications:

• Channel Count: 24 (Up to 16 BNC connections)
• Recording Rate: 150Mbps
• Video Outputs: 1x HDMI®, 1x VGA
• Video Signal Loss Detection: Yes
• Motion Detection: Server Side (Adjustable Sensitivity, Custom Grid)
• PTZ Control: IP Protocol
• Recording Mode: Continuous, Event, Continuous + Event
• Backup: Cloud, Network, USB
• Operating System: Linux
• Storage Capacity (Size): 40TB
• Network: Dual GbE
• Power Supply: 150W
• Power Rating: AC 100~240V, <2.5A, 50-60Hz
• Dimensions: 17.3” x 13.6” x 1.9” (440 x 344 x 49mm)
• Unit Weight: 9.5lbs
• Certification: CE, FCC, UL, cUL
• SSD OS Drive: Standard
• Storage Drives: (Qty) 2
