Product Description:

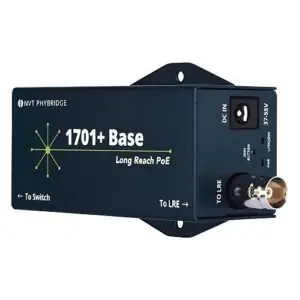

This NVT Phybridge 1701+ Base Extender can boost the downlink ports of an ordinary Ethernet switch to 420Mbps and PoE plus over coax, singles pair UTP, or 2-wire with up to a distance of 8,000ft (2.4km) in RG6. The 1701+ Extender solution means that IP IoT devices can now run on Coax, UTP, or even 2-wire cabling without adding extra cabling infrastructure and saving cost, time, and environmental e-waste. It is compatible with 802.3at/af PoE switches and provides up to 30W power output. For non-PoE switches or high power requirements (up to 100W) the 1701+ Base can be locally powered. LED lights show power, links, and data as they are on icons on the front panel. This NVT Phybridge 1701+ Base Extender is compliant with IEEE 802.3at/af such as enabled IP phones, cameras, access rights, speakers, and even facility lights.

But if you’re looking for more options, feel free to check out the accessories available here in our shop.

Main Features:

• Paired with 1701+ Link Adapter
• Data rate up to 420 Mbps with up to 8,000′ (2.4km) reach
• Negotiates power with 802.3at/af PoE Switch (802.3at/af max power is 30W)
• 1701+ Base can also be locally powered for non-PoE switch deployments or high-power delivery (100W)
• 10/100/1000 Base-T, Auto-MDIX interface with Ethernet Switch
• Supports up to 4 endpoints in a point to multi-point topology
• LED Indicators (power, link, data)

Specifications:

• Dimensions:
  • 10.5cm x 5.4cm x 3.4cm (LxWxH)
  • 4.15” x 2.11” x 1.33” (LxWxH)
• Weight: 138g (4.87oz)
• Interface Line side: 1 BNC port
• Interface IEEE side (IP Device): 1 RJ45 port, will negotiate power with 802.3at/af compliant Ethernet PoE switch
• Line side Data rate: Up to 420 Mbps, HPAV2.1 (2-86 MHz)
• IEEE side Data rate: 10/100/1000 Mbps
• Power Supply:
  • 37-55VDC, 100W on Coax, locally powered*, 30W powered by 802.3at/af Switch
• Power Consumption: 2W
• Operating Temperature: -4°F to 140°F (-20°C to 60°C)
• Humidity: 10% to 95% (non-condensing) at 95°F (35°C)
• MTBF: 20+ years
• Frequency: 2MHz – 86 MHz.
• Sending levels: 12V / 23.8 dBm signal.
