Product Description:

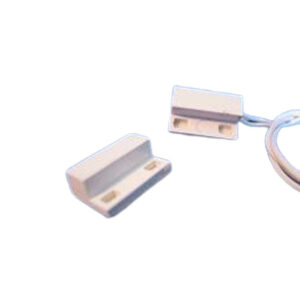

This Mini-Surface Mount Switch offers 18″ long wire leads that allow flexible positioning and connection within your setup. It provides hassle-free installation for your security and convenience for your alarm system needs. The closed-loop contact design ensures consistent performance and reliable detection of your system. The mount switch is ideal for Door or Window Detection in Alarm Systems, ensuring prompt and accurate alerting in case of unauthorized access. It has a side flange for easy mounting, facilitating a secure and straightforward setup. This Mini-Surface Mount Switch offers a sufficient operating gap of >” (19.0mm) min that ensures efficient functionality even when there’s a considerable distance between components. For specific installation requirements, a mounting spacer can be provided on request.

But if this contact isn’t quite what you’re looking for, take a look at our available hardwired contacts here in our shop.

Main Features:

• Closed loop
• 18″ Long Wire Leads
• Surface Mount with Screw and Adhesive tape (Optional) Mounting
• Side Flanges for Easy Mounting
• Operate Gap >” (19.0mm) min.
• Mounting Spacer is also available on request
• Typically used for alarm system door or window detection

Specifications:

• Contact Rating: 10W/A Switching Voltage (Max.): 200VDC
• Switching Current (Max.): 0.5 Amp.
• Life Expectancy: 10x 10.6
• Shock Resistance: 30G for 11 msec.
• Vibration Resistance: 20G (10 to 1000Hz)
• Magnets: Alinco/Rare Earth (Unless otherwise specified)
• Armour jacket: Stainless Steel (type 304)
• Plastic Material: ABS Plastic
