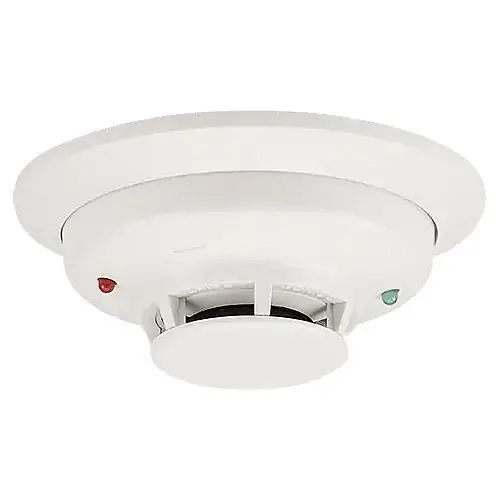

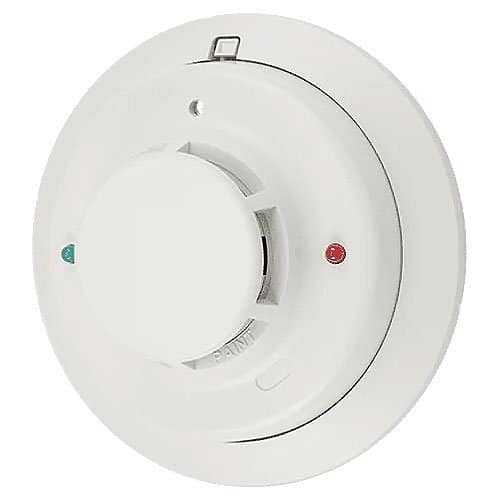

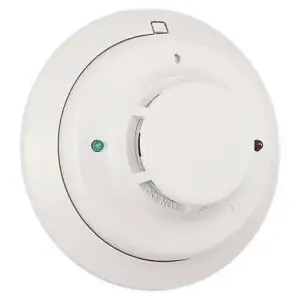

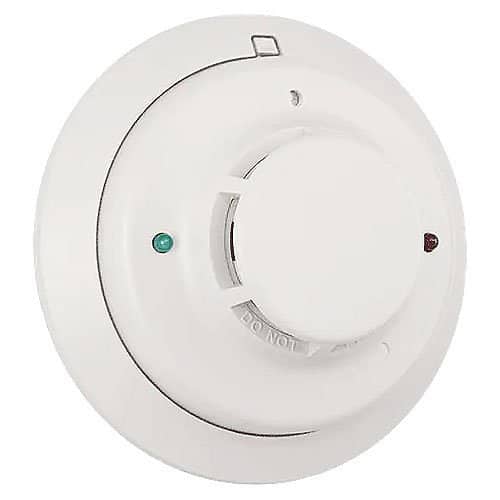

The Hardwired 2-wire Smoke and Heat Detector represents significant advancement in conventional smoke detection. This detector features installation ease, intelligence, and also instant inspection.

The Hardwired 2-wire Smoke and Heat Detector with Siren is also available. But if this isn’t what you’re looking for, please take a look at our other smoke detectors.

Installation Ease:

Because of its plug-in design, installing this detector is quick and simple. In addition, efficient wire management and pre-wiring capabilities slash installation time. To complete the installation, simply Stop-Drop ’N Lock the head onto the base.

Intelligence:

The Hardwired 2-wire Smoke and Heat Detector also offers intelligence through drift compensation and smoothing algorithms to reduce unnecessary maintenance calls. Additionally, when it needs cleaning, its remote maintenance signal lets you know.

Instant Inspection:

Green and red LEDs also make status indication more intuitive on the this detector. And with the reader, detector sensitivity measurement is precise and complete within seconds. So both features reduce inspection time to an instant.

Auxiliary Form C Relay:

When controlling auxiliary functions such as elevator recall or door closure, this detector additionally offers a two-wire Form C relay model, available either with or without an integral sounder.

Additional Features:

• Plug-in detector line, mounting base included
• Large wire entry port
• In-line terminals with SEMS screws
• Mounts to octagonal and single-gang back boxes, 4-square back boxes, or direct to wall or ceiling
• Stop-Drop ’N Lock attachment to base
• Removable detector cover and chamber
• Built-in remote maintenance signaling
• Drift compensation and smoothing algorithms
• Simplified sensitivity measurement
• Wide-angle, dual-color LED indication
• Loop testing via EZ Walk feature
• Built-in test switch

Where to Install:

• On every level of the home, including basements
• In every bedroom
• Outside each separate dwelling unit sleeping area, within 21 feet of any door to a sleeping room
• If wall mounted, not farther than 12 inches from the adjoining ceiling surface
• Do not install within 10 feet of a fixed cooking appliance. Instead, use a photoelectric or ionization (with a silencing button) between 10 feet and 20 feet of a fixed cooking appliance
• Where required by other governing laws, codes, or standards
