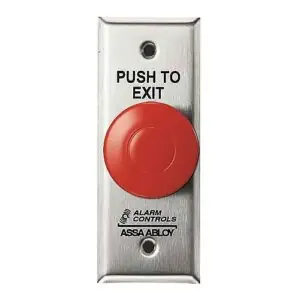

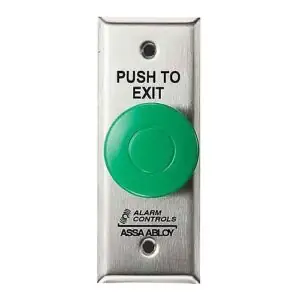

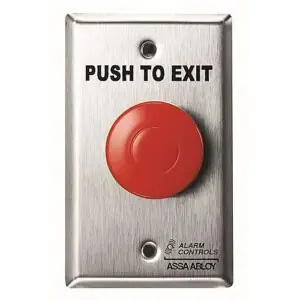

Exit Button with Pneumatic Timer
$430.00 – $470.00
This Exit Button with a Pneumatic Timer is a highly durable and reliable access control device designed for secure egress. This station has a solid switch of one gang wall plate indicating 302 stainless steel and 430 stainless steel for the durability of the product. The push plate includes a green and red mushroom button with clear lettering of the words “PUSH TO EXIT”. With the help of the pneumatic timer, it is possible to set the time delay for the exit for 2 to 60 seconds, so the door will open without external power.
Description
Product Description:
This Exit Button with a Pneumatic Timer is a highly durable and reliable access control device designed for secure egress. This station has a solid switch of one gang wall plate indicating 302 stainless steel and 430 stainless steel for the durability of the product. The push plate includes a green and red mushroom button with clear lettering of the words “PUSH TO EXIT”. With the help of the pneumatic timer, it is possible to set the time delay for the exit for 2 to 60 seconds, so the door will open without external power. With a rated workload of up to 1 million times, the appliance was designed for longevity. It provides a convenient way to keep the door unlocked for a specified amount of time, allowing for easy entry or egress. The door will relock when the relay time has expired.
This Exit Button with a Pneumatic Timer is suited to or can be used at temperatures that vary between 15-120F degrees, or between 9-49 C degrees. If this isn’t quite what you’re looking for, make sure to take a look at our other request to exit devices.
Main Features:
- Switch mounted on a single gang wall plate with 430 stainless steel finish
- 1-1/2″ Green/Red mushroom push button
- Plate-screened “PUSH TO EXIT” for easy-to-follow egress instructions
- Pneumatic time delay is adjustable from 2 to 60 seconds
- Does not require external power for operation
- Timer life: up to 1 million operations
Specifications:
- Certifications & Listings:
- UL 294 listed
- Electrical:
- One N/O and one N/C contact pair
- Contacts rated 10A at 120 VDC
- Switch depth behind plate: 2-1/4″
- Switch time repeatable +/- 10%
- Switch terminated with 10” colored leads
- Operating Temperature: +15 to 120F (-9 to 49C)
Please check out our YouTube Channel for more information.
Additional Information
Color | Green, Red |
---|---|
Finishing | 302 Stainless Steel, 430 Stainless Steel |
