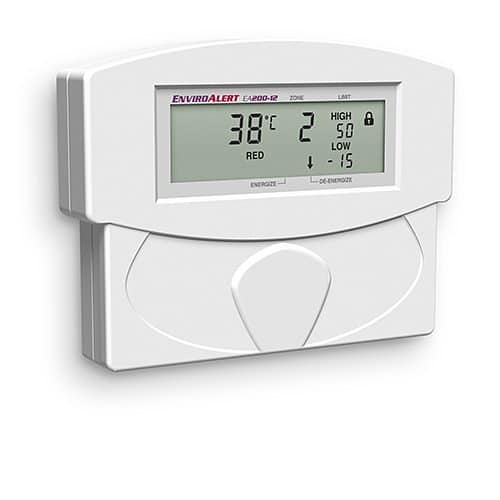

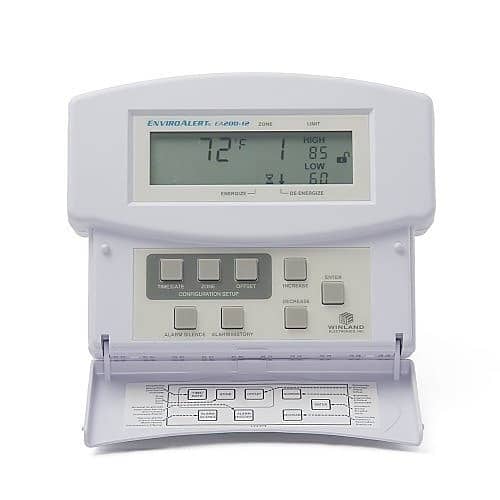

Dual Temperature Monitor

(1 customer review)

$380.00

Introducing the new Dual Temperature Monitor that allows you to monitor two different areas at the same time making it ideal for various applications such as laboratories, storage facilities, or server rooms. It has an easy-to-read LCD display to effortlessly view the temperature status and readings at a glance. Equipped with 8-event incident memory, this temperature monitor records and stores important temperature-related incidents, including the time and date they occurred.

SKU: 3681 Category:
Description

Product Description:

Introducing the new Dual Temperature Monitor that allows you to monitor two different areas at the same time making it ideal for various applications such as laboratories, storage facilities, or server rooms. It has an easy-to-read LCD display to effortlessly view the temperature status and readings at a glance. Equipped with 8-event incident memory, this temperature monitor records and stores important temperature-related incidents, including the time and date they occurred. It has an auxiliary output relay that can be connected to a local audible alarm, this instantly notifies users of any temperature anomalies. The monitor also includes an auxiliary alarm silence feature with a 10-minute timer to temporarily mute the alarm while fixing the issue.

The Dual Temperature Monitor also includes tamper-proof lock settings which prevent any unauthorized access to your settings. Lastly, this monitor has an alarm notification feature via a dry contact relay enabling seamless integration with any alarm panel.

You can also browse other monitoring devices we have in our shop. Check them out now!

Dual Temperature Monitor

Main Features:
  • Simultaneous operation of two sensors
  • Easy-to-read LCD display
  • 8 event incident memory, including time and date
  • Auxiliary output relay for local audible alarm
  • Auxiliary alarm silence feature with a 10-minute timer
  • Offset sensor calibration adjustment
  • Tamper-proof lock setting
  • Alarm notification via dry contact relay to any alarm panel
  • TUV, FCC, CE, RoHS WEEE Certified
Product Specifications:
Power Requirements 11 to 14 VDC @ 120mA (EA200-12)23 to 26 VDC @ 120mA (EA200-24)
On-Board Temp Sensor ambient temp sensor 32° to 122°F (0° to 50°C)
Unit Operating Range 32° to 122°F (0° to 50°C)
Low/High Limit Adjust Range -58° to 299°F (-50° to 150°C)
Alarm Outputs 2 Form C Relays (N.O./N.C.) 1A @ 30 VDC (Configurable)
Auxiliary Alarm Output 1 Form C Relay (N.O./N.C.) (Non-Configurable)
Alarm Time Delay 0 to 120 minutes (program independently for each zone)
Console Dimensions 6 x 4.75 x 1.25″ (15.24 x 12.07 x 3.18 cm)
