Product Description:

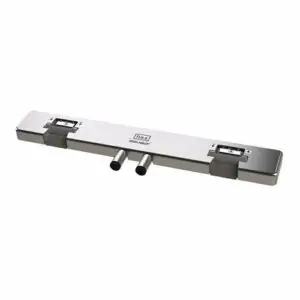

This Concealed Electric Strike is designed to accommodate mortise latchbolts up to 3/4″ throw to ensure versatile use with various mortise locksets. It is easy to install and requires no cutting to the face of the frame for a clean and straightforward installation process. The strike offers tamper-resistant security and boasts an impressive static strength of 1,500 lbs and dynamic strength of 70 ft-lbs. It also features field-selectable fail-safe/fail-secure settings to adapt to varying security needs. With a non-handed design and internally mounted solenoid, it fits both left and right-handed doors and protects the solenoid from damage. This Concealed Electric Strike is ideal in various applications or areas like commercial buildings, residential properties, and industrial settings. The strike is certified to meet industry standards, ensuring reliability and compliance across various applications.

But if you are looking for more electric strike products for your access control system. Feel free to browse here in our shop.

Main Features:

• No cutting of the face of the frame
• Stainless steel construction
• Tamper-resistant
• Static strength 1,500 lbs
• Dynamic strength 70 ft-lbs
• Endurance 500,000 cycles
• Field selectable fail safe / fail secure
• Dual voltage 12 or 24 VDC/VAC
• Non-handed
• Metal or Wood Frame

Specifications:

• Certifications:
  • ANSI/BHMA A156.31, Grade 1
  • UL 1034 burglary-resistant listed and suitable for outdoor use
  • UL 294 listed
  • RoHS compliant
  • UL 10C fire rated, 3-hour single door (fail secure only)
  • CAN/ULC-S104 fire door conformant
  • NFPA-252 fire door compliant
  • ASTM-E152 fire door compliant
  • NFPA 80-07 compliant
• Frame Application:
  • Metal
  • Wood
• Electrical (DC Continuous Duty):
  • Dual voltage 12/24 VDC/VAC
  • 240 mA at 12 VDC/120 mA at 24 VDC
  • PoE friendly
