Product Description:

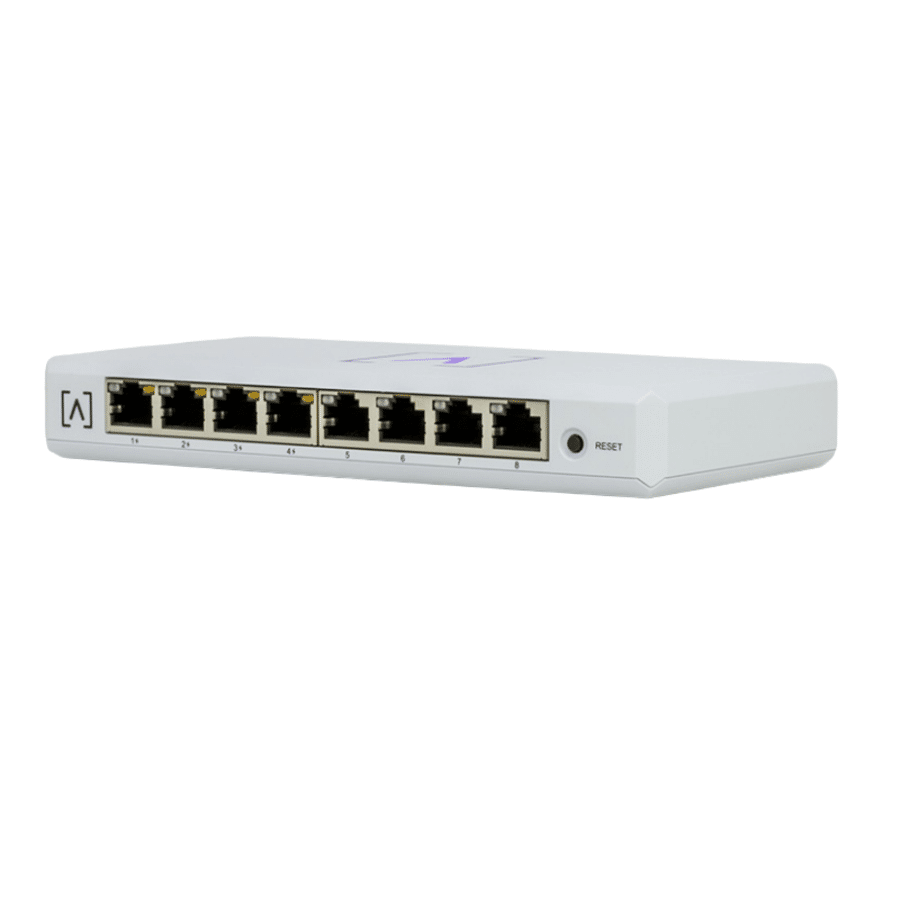

This Alta Labs 8-Port 60W POE Switch is a compact yet powerful networking solution designed to simplify deployment while maximizing performance. It delivers Power over Ethernet across 8 ports to allow seamless connection of IP cameras, access points, VoIP phones, and more. For extended connectivity, it also includes high-performance SFP/SFP+ ports to support fiber uplinks for faster, more reliable data transfers. The Alta Labs switches include Bluetooth functionality, allowing for seamless setup using the Alta Labs mobile app. Users can manage, monitor, and make quick configurations using the Alta Labs mobile app. Cloud-based management gives you scalable control across multiple sites and devices, with advanced features like VLAN stacking, IGMP snooping*, 802.1X authentication*, and network loop detection* to keep your network secure and optimized.

The Alta Site Manager provides an overview of all sites, displays the number of devices for each site, and shows when updates are needed. With flexible mounting options and a sleek, user-friendly interface, this switch is built for professional installations of all sizes. But if you’re looking for more options, feel free to check our available PoE switches here in our shop.

*Note: Features marked with an asterisk are coming soon through future firmware updates.

Main Features:

• Power Over Ethernet
• SFP/SFP+ High Performance Connectivity
• Bluetooth Setup
• Mobile App
• Scalable Cloud-Based Management
• VLAN Stacking
• Egress and Ingress Rate Limiting
• IGMP Snooping*
• 802.1X Authentication*
• Network Loop Detection*
• Customizable Dashboard
• Status Snapshots
• Device Cards
• Site Manager
• Mounting Flexibility
• More Features to Come with Automatic
• Firmware Updates

Specifications:

• Ports:
  • Interface ports: (8) 10/100/1000 Mbps
  • SFP/SFP+: None
  • Switching Capacity: 16 Gbps
  • Non‑blocking Throughput: 8 Gbps
  • PoE Budget/Max: 60 Watts
  • PoE Supply: 30 Watts per port
•  LEDS:
  • PoE: Orange
  • Network: Orange: 10/100 Mbps, Blue: 1000Mbps
  • Management Factory: reset button
  • Bluetooth: Yes, Setup
  • Packet Buffer: 4.1 Mbit
• Power:
  • Max Power Consumption w/o PoE: 8 Watts
  • Max Power Consumption Full PoE: 68 Watts
  • Output: PoE+, 54VDC, 0.6A Max.
  • Power Supply: Universal AC, 100 ‑ 240VAC 50‑60Hz External
  • RJ45 Port Surge Protection: 12kV for ESD ‑ contact, 25kV for ESD ‑ Air
• Environmental:
  • Mounting: Locking Wallmount
  • Operating Temperature: ‑5 to 50° C (23 to 122° F)
  • Operating Humidity: 10 to 90% Noncondensing
  • Certifications: CE, FCC, IC
• Dimensions: 25.7 x 91 x 180 mm (1 x 3.6 x 7.1″)
• Weight: .38 kg (.83 lbs)
• Material Type:Injection Molded Plastic
• Material: Finish Matte
• Color: White

Please check out our YouTube Channel for more information.
