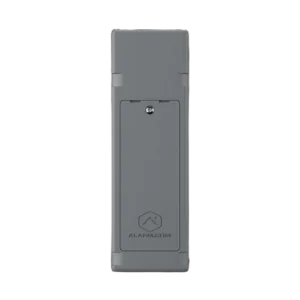

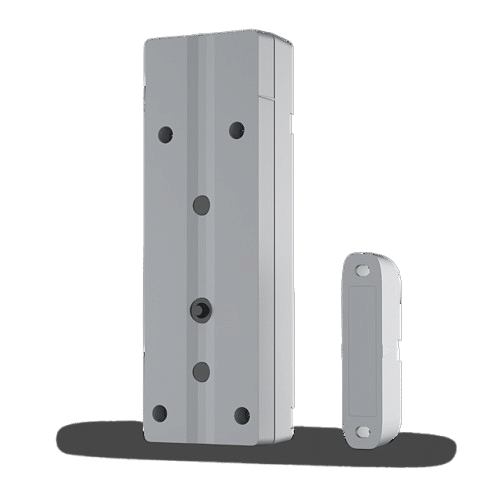

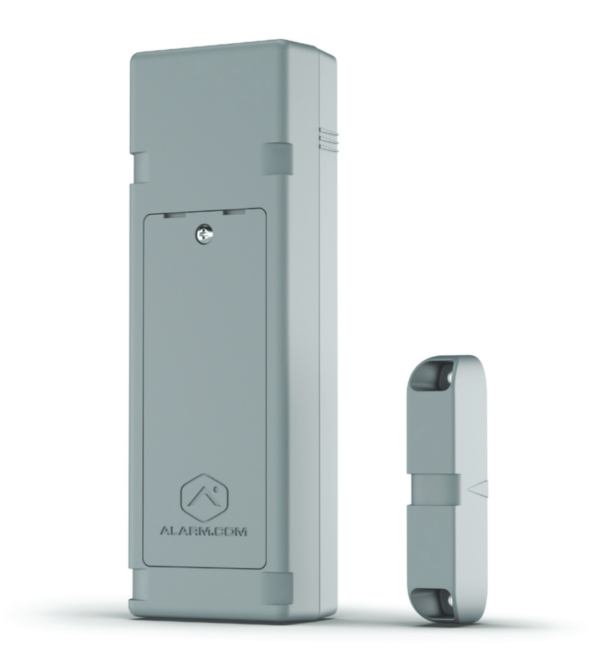

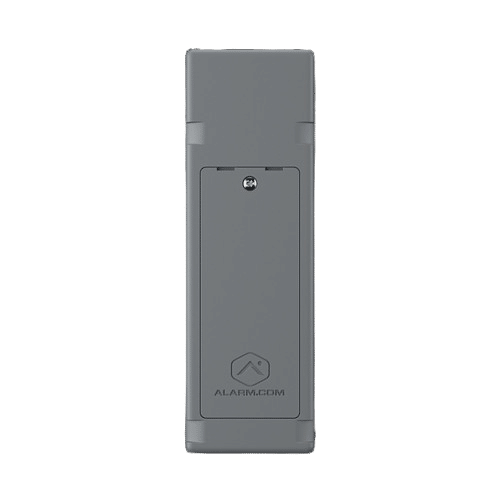

Alarm.com Flex IO Cellular Sensor

The Alarm.com Flex IO Cellular Sensor enables new levels of flexibility for monitoring valuable property and assets anywhere that LTE connectivity is available. Whether used with a backyard gate or a remote storage unit, the Flex IO empowers users to keep an eye on what matters most. It can be used with the included magnet to monitor doors, gates, and other entryways. It also comes equipped with input and output options for integrating compatible devices that lack long-range connectivity.

Product Features

• Detect open/close using a magnetic reed switch
• Detect state change for devices using Loop Input
• Change state of third-party and device using Relay Output (requires DC power to support always-on cellular connection)
• Optional EOL (end of line) resistor to detect cut wires. EOL resistor can be 300 kΩ or higher. Normally Open configuration is preferred for low power usage.
• Optional mount tamper and battery door tamper alerts• Multiple mounting options, including screws or zip ties.
• Multiple carrier options, including AT&T and Verizon (US only).

Specifications

• Temperature: The battery life will be optimal between temperatures of 32°F to 140°F (0°C to 60°C), though the device can operate from -40°F to 140°F (-40°C to 60°C).
• Dimensions: Main unit: 6.8 x 2.2 x 1.3″ (17.3 x 5.6 x 3.3 cm). Magnet: 3.1 x 0.68 x 0.87″ (7.9 x 1.7 x 2.2 cm).
• Battery Power: Four 1.5 V AA lithium batteries (iron disulfide). 2+ years of battery life, depending on battery chemistry and operating temperature.
