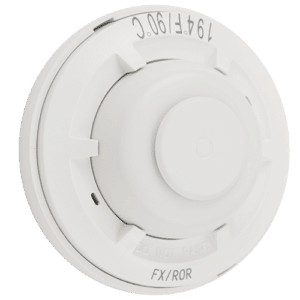

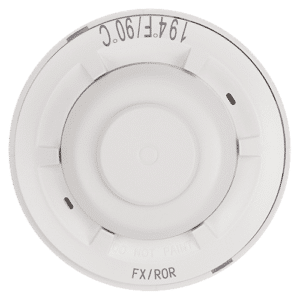

ADT Heat Detector Fixed Temp 194 and Rate of Rise
$50.00
The ADT Heat Detector Fixed Temp 194 and Rate of Rise offers a low-cost means for property protection against fire, and for non-life-safety installations where smoke detectors are inappropriate. So with this heat detector, you can rest easy.
Description
The ADT Heat Detector Fixed Temp 194 and Rate of Rise offers a low-cost means for property protection against fire, and for non-life-safety installations where smoke detectors are inappropriate. So with this heat detector, you can rest easy.
Another advantage of the ADT Heat Detector Fixed Temp 194 and Rate of Rise is its easy installation process. The device can be easily mounted on a ceiling or wall and wired to a control panel. Once installed, the device requires little maintenance, making it a cost-effective option for home or business owners.
Multiple configurations
This detector also offers a full line of configurations to accommodate a broad range of applications. Additionally, both single- and dual-circuit models are available for low- and high-temperature ratings with either fixed temperature or combination fixed temperature/rate-of-rise (ROR) activation. The ROR element of the fixed/ROR models is also restorable to accommodate field testing.
Installation flexibility
In addition, to satisfy a variety of installation needs, the detector easily mounts to single-gang and octagonal back boxes. And these models accommodate four-square back boxes when used with a square to round plaster ring. Additionally, the reversible mounting bracket permits both flushes- and surface-mount back box installations.
Features
- Multiple configurations for installations
- Single- and also dual-circuit models
- Fixed temp and also combination fixed- temp/rate-of-rise
- 135°F or 194°F ratings.
- Plain housing for residential installations (Model 5601P)
- Easy-to-use terminal screws
- A broad range of back box mounting options: Single gang, 3.5˝ and 4˝ Octagonal, 4˝ square with square to round plaster ring
- Reversible mounting bracket
Specifications
- Dimensions: 1.69″ (4.3cm) H x 4.57″ (11.6cm) Dia.
- Heat Sensor: 194°F (90°C) fixed temperature, 15°F (8.3°C) per minute rate-of-rise
- Operating Humidity Range: 5 to 95% RH non-condensing
- Weight: 6 oz. (170 g)
- Wiring: Single-Circuit
- Wiring Gauge: 14-22 AWG
