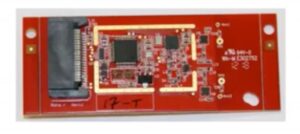

ADT Command Wireless Receiver Module Description:

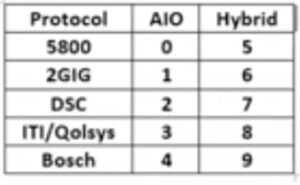

The ADT Command Wireless Receiver Module works as a plug-in module (inside any control panel) for utilizing existing 1-way wireless devices. It is a single and simple plug-in solution that enables ProSeries panels to communicate with multiple wireless security sensor protocols.  Is also compatible with ADT Command, Honeywell, 2GIG, Interlogix, as well as DSC. Features only one protocol at a time and no repeaters. Furthermore, once installed on the panel, the module requires the rotary dial to be set to the protocol specific to the panel. In addition, AIO Requires a new back plate (included in the package) which has a built-in antenna. Whereas the Hybrid uses an external antenna. For additional information regarding the protocol of this module, see the chart listed below.

• Easy plug-in installation and enrollment
• Protocols supported include 5800 Series, 2GIG, DSC (North America), ITI and BOSCH
• Diversity antennas for increased coverage are located in the All-in-One panel back plate

PRODUCT OVERVIEW

One Module with Multiple Possibilities
– Installs directly to and powered from the ProSeries panel
– Includes rear mounting plate with integrated antenna
– Reuse competitors’ one-way sensors
– Supports 315, 345, and 433 MHz competitive protocols
– Protocol selection is based on a single rotary
