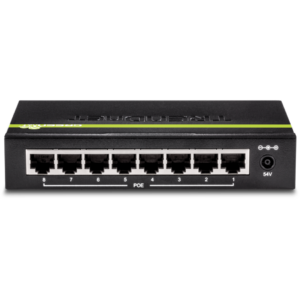

8-Port Gigabit POE+ Switch

(1 customer review)

$160.00

The 8-Port Gigabit POE+ Switch does exactly what you would expect from a switch. It delivers power and data over ethernet devices such as our Alarm.com 1080P Bullet CAMERA or our  Alarm.com 1080P Dome Camera. The POE+ Switch also provides Gigabit networking along with 8 ports that are all POE/POE+. Additionally, each port supports up to 30W of power. The switch has a total power budget of 61W to power all of your IP Cameras.

In addition, the design of the POE+ switch is great for desktops. Plus, not only does it look great, it’s also a very sturdy design made from very quality materials. It also has LED lights, which makes it very easy to understand exactly what ports are powered and which are active. And this POE switch has a fast data transfer rate up to 200mbps!

SKU: 2817 Categories: ,
Description

8-Port Gigabit POE+ Switch

The 8-Port Gigabit POE+ Switch does exactly what you would expect from a switch. It delivers power and data over ethernet devices such as our Alarm.com 1080P Bullet CAMERA or our  Alarm.com 1080P Dome Camera. The POE+ Switch also provides Gigabit networking along with 8 ports that are all POE/POE+. Additionally, each port supports up to 30W of power. The switch has a total power budget of 61W to power all of your IP Cameras.

In addition, the design of the POE+ switch is great for desktops. Plus, not only does it look great, it’s also a very sturdy design made from very quality materials. It also has LED lights, which makes it very easy to understand exactly what ports are powered and which are active. And this POE switch has a fast data transfer rate up to 200mbps!





Product Features of the 8 Port Gigabit POE+ Switch

  • 61W PoE Power Budget
  • 16 Gbps Switching Capacity
  • Sturdy Metal Switch
  • Desktop design with LED Lights
  • Plug and Play installation
  • 8 x Gigabit PoE+ ports

Specifications

Device Interface
  • 8 x Gigabit PoE/PoE+ ports
  • LED indicators
Data Transfer Rate
  • Ethernet: 10 Mbps (half-duplex), 20 Mbps (full-duplex)
  • Fast Ethernet: 100 Mbps (half-duplex), 200 Mbps (full-duplex)
  • Gigabit: 2000 Mbps (full-duplex)
Performance
  • Data RAM Buffer: 128KB
  • Switch Fabric: 16Gbps
  • MAC Address Table: 8K entries
  • Forwarding rate: 11.9Mpps (64-byte packet size)
  • Jumbo Frame: 9K
Power
  • Input: 110-240V AC, 50/60 Hz 1.2A
  • Output: 54 V DC, 1.67 A
  • Consumption: 36 Watts (Max.)
PoE
  • PoE budget: 61W
  • Pin 3,6 for power+ and pin 1,2 for power- (mode B)
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 150 x 95 x 30 mm (5.9 x 3.7 x 1.2 in.)
Weight
  • 400 g (14 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 3-year warranty

Package Contents

  • Quick Installation Guide
  • Power Brick (54V DC, 1.67A)
  • Power cord

Let us know if you have any other questions and here is a link to our Youtube channel for more info.
