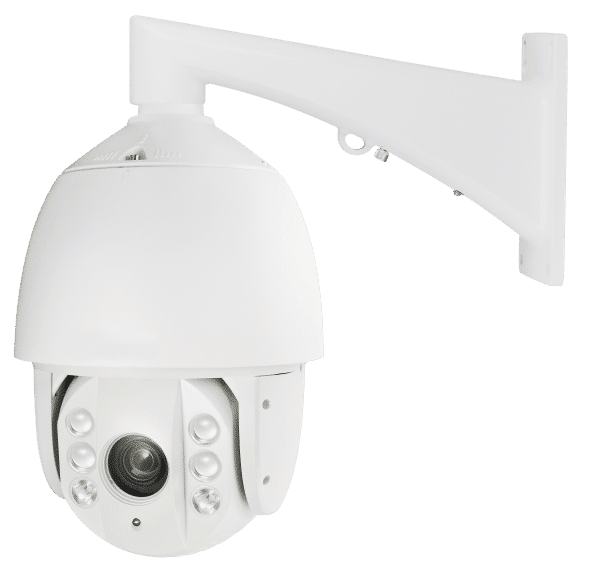

2MP IP PTZ Camera with IR with 30X Zoom

$1,398.00

The 2MP IP PTZ Camera with IR with 30X Zoom delivers a high-performance surveillance solution. 1/2.8” Sensor delivers 2 Megapixel Full HD Resolution images with detailed views and clear visibility in all lighting conditions. Additionally, with the Digital Wide Dynamic Range (D-WDR) feature, the camera can manage different areas in the image individually and apply separate brightness modifications within the same view. The Day and Night function also helps the camera adapt to low lighting conditions. Plus, built-in high performance IR LED illuminators capture clear images of objects up to 20 m even in total darkness.

SKU: 1393 Category:
Description

The 2MP IP PTZ Camera with IR with 30X Zoom delivers a high-performance surveillance solution. 1/2.8” Sensor delivers 2 Megapixel Full HD Resolution images with detailed views and clear visibility in all lighting conditions. Additionally, with the Digital Wide Dynamic Range (D-WDR) feature, the camera can manage different areas in the image individually and apply separate brightness modifications within the same view. The Day and Night function also helps the camera adapt to low lighting conditions. Plus, built-in high performance IR LED illuminators capture clear images of objects up to 20 m even in total darkness.

In addition, the 3D DNR (Dynamic Noise Reduction with a 3D filter) in the camera manages the spatial noise reduction.  Basically, it detects the unwanted noise in the same frame and gets rid of it. Back Light Compensation (BLC) mode also improves image detail of foreground objects in excessive background light conditions. 3D Intelligent Positioning of the camera also allows it to accurately move and position it in accordance with required directions. With the simple and sturdy design, installing the 2MP IP PTZ Camera with IR with 30X Zoom can be hassle-free.

2MP IP PTZ Camera with IR with 30X Zoom Installation:

Please remove the protective film on the lower dome after the installation is finished. Do not touch the bubble of the lower dome directly by hand. The image blurs otherwise. Here are the steps:

  1. Hook the two ends of the safety rope to the back box of the speed dome and the wall mount
    respectively. Route the cables through the mount as shown follows.
  2. Loosen the lock screws on the wall mount as shown below.
  3. Align the speed dome with wall mount and rotate it counterclockwise or clockwise to the mount
    tightly as shown below.
  4. Use L-wrench to tighten the lock screws to secure the speed dome and the wall mount.



Specifications:

  • Image Sensor: 1/2.8’’ sensor
  • Effective Pixel: 2230K pixels
  • Shutter Speed: 1 ~ 1/10,000s
  • Day & Night: IR Cut Filter
  • Lens Focal Length: 4.3 ~ 129mm, 30x
  • Pan Range: 360° endless
  • Tilt Range: -15° ~ 90° (Auto Flip )
  • Patrol: 8 patrols, up to 32 presets per patrol
  • IR Distance: Up to 394 ft
  • Max. Image Resolution: 1920×1080
  • Image Compression: H.264/MPEG4
  • Audio Compression: G.711u /G.711a /G.726
  • Simultaneous Live View: Up to 6
  • Working Temperature: -30 °C ~ 65°C(-22°F ~ 149°F)
  • Humidity: 90% or less
  • Power Supply: 24 VAC / PoE+
  • Power Consumption: Max. 30W / 21W (IR On / Off )
  • Dimension: 220×353.4 mm (8.66”×13.91” without bracket)
  • Weight: 5.5 kg (12.13 lbs without bracket)
