The Vista 20P Kit with Numeric RF Keypad is a kit that comes with an alarm control panel that is a member of the VISTA Series of security systems.

About the Panel

While the Vista 20P Kit with Numeric RF Keypad is considered a residential alarm control panel, it is certainly equipped with enough features to be used in commercial settings as well. This kit consists of a circuit board installed inside of a metal alarm cabinet. You can connect alarm keypads, hardwired alarm devices, wireless receivers, alarm sirens, etc. to the alarm control panel’s circuit board to customize your home security system. The VISTA 20P alarm control panel does need to be paired with at least (1) alarm keypad to control your home security system. **This panel usually requires an Alpha Programming Keypad to install and program, if you buy this kit and do not have access to one, you may not be able to install it.

It has Numeric RF Keypad supports up to (48) total zones of protection. There are (8) hardwired zones built into the alarm control panel itself. Using the zone doubling feature, you can expand those (8) zones up to a total of (15) zones.

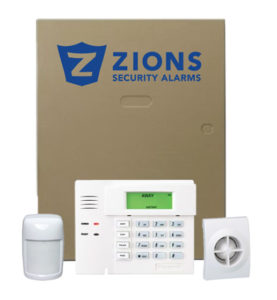

Vista 20P Kit with Numeric RF Keypad comes with the following:

• Vista 20P Control Panel and Box
• Numeric RF Keypad
• Hardwired Motion Detector with Pet Immunity
• 4 Amp Back up Battery
• Transformer

Does NOT come with the following (and you might want to add these)

• Wire to power the panel from the transformer
• Wireless Door Sensors
• Wireless Motion Detector
• Cellular GSM Radio
• Keychain Remote

You can also use terminals to wire a traditional phone line to your Vista 20P Kit with Numeric RF Keypad if you want phone line alarm monitoring for your alarm control panel.

General:

The alarm control panel is powered by an included plug-in 120VAC transformer. This wires to terminals 1 and 2 on the VISTA 20P alarm control panel’s terminal strip. Terminals 4 and 5 provide auxiliary power (up to a maximum of 12VDC, 600mA) for powering devices like keypads, motion detectors, glass break detectors, etc. Terminals 3 and 4 supply up to 12VDC, 2AMP alarm output for compatible sounders. When a burglar alarm is tripped, the VISTA 20P uses a steady output and when a fire alarm is tripped, a temporal pulse is used. A rechargeable sealed lead-acid type battery can also be used to provide backup power during power outages. You must use at least a 12VDC, 4AH backup battery which should provide up to (24) hours of backup power.
