Product Description:

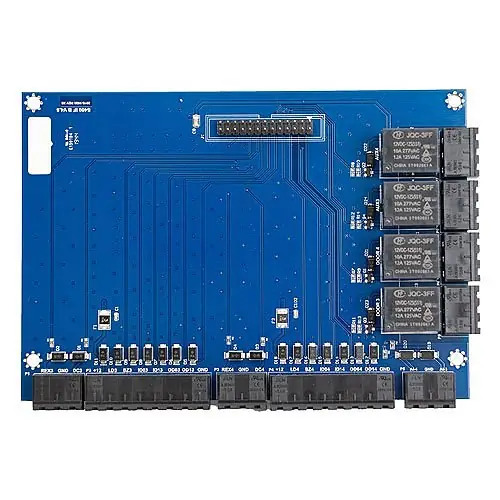

This Speco 2-Door Expansion Board is designed to enhance the capabilities of the Speco 2-Door Controller and offers expanded access control for secure and efficient facility management. It is equipped with 2 readers for both entry and exit (In/Out) for comprehensive monitoring and control of access points. Includes 2 relays (Lock/Aux) to manage locking mechanisms and auxiliary functions seamlessly. The expansion board provides 3 inputs (REX, DPS, Aux) to integrate with request-to-exit devices, door position switches, and auxiliary sensors for enhanced security and functionality. Safety and performance are assured with UL listing under the 294 Series 7. Thus, it complies with National Defense Authorization Act (NDAA) requirement and adheres to all federal rules.

If you’re looking for more options for your access control components, You can always check it out right here in our shop.

Main Features:

• Expands Speco 2-Door Controller up to 4 doors
• 2 Readers (In/Out)
• 2 Relays (Lock/Aux)
• 3 Inputs (REX, DPS, Aux) Global
• UL listed – 294 Series 7
• 5-year warranty
• NDAA Compliant

Specifications:

• Operating Temperature 50°F to 95°F (10°C to 35°C)
• Dimensions 6.125 x 4.25 x 0.75in
• Internal Power Supply Controller & Readers Only
• Readers (Wiegand) 4 Total, One In & One Out Reader for Each Door
• Reader Power 300mA @ 12V Max per Reader
• 1000mA @ 12V Max per System
• Request to Exit (REX) Inputs 2 Total, One for Each Door
• Door Position (status) Inputs 2 Total, One for Each Door
• Auxiliary Input 2 Total, General Purpose
• Door Lock Outputs 2 Form C Relay, 24V @ 2.0A
• Auxiliary Outputs 2 Form C Relay, 24V @ 2.0A
