Product Description:

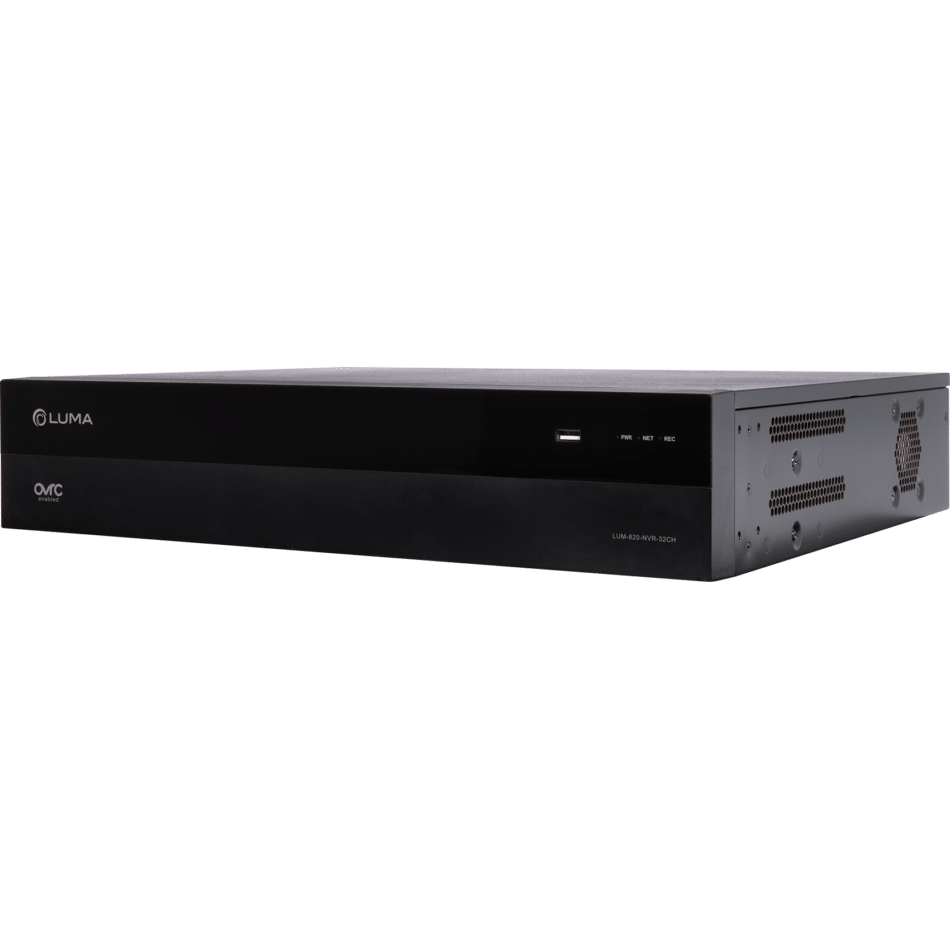

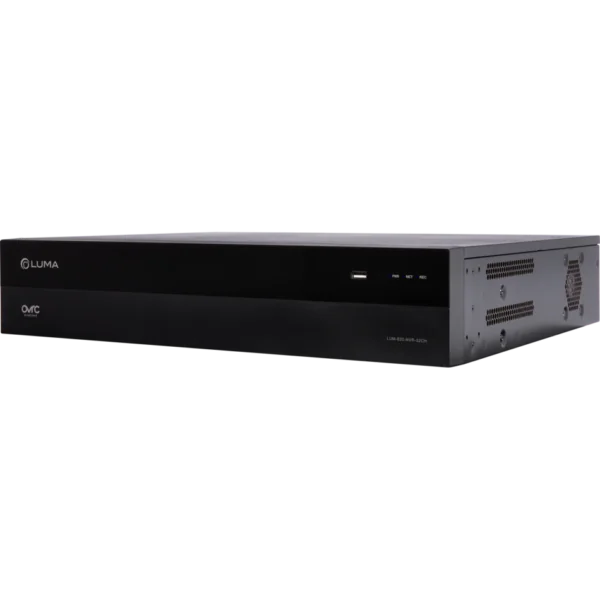

This Luma 820 Series Network Video Recorder is a powerful and scalable solution for commercial surveillance systems in large-scale operations. With support for up to 32 IP cameras, including 16 built-in PoE ports and another 16 channels via a network switch, this NVR has a lot of flexibility in deployment for different environments. It can handle ultra-high resolution video inputs up to 12MP, and it uses H.265/H.264 compression technology for effective storage management. Integrated artificial intelligence improves the security monitoring mechanism with superior human, vehicle, and non-motor vehicle detection capabilities. The recorder has dual HDMI outputs, which support two separately configured displays and dual Ethernet ports, providing network redundancy for uninterrupted connectivity. It  provides high bandwidth capacity of up to 196 Mbps for effortless recording and remote access. Its smart search functions, such as time, event, tag, and smart search, can be exploited by users for rapid and convenient search of footage.

Having 8 internal hard drive bays, the system can have up to 144TB of storage, and this caters for data-intensive installations. The unit is NDAA compliant and comes with remote monitoring with the Luma View app and popular web browsers like Chrome, Firefox, Safari, and Edge. Coming in a 2U rack-mountable chassis with an inbuilt power supply, Luma 820 Series Network Video Recorder unites performance, flexibility, and reliability to address the requirements of professional surveillance environments. But if you’re looking for more options, feel free to check our available Luma devices here in our shop.

Main Features:

• Supports 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280× 1024/960P/720P/960H/D1/CIFIP video input
• H.265/H.265+/H.264/H.264+ encoding codec
• Multi-mode recording
• Playback: 16CH simultaneous playbacks
• Search: time slice, time, event, tag and smart search
• Supports multiple Video Content Analysis (VCA) events
• Express & flexible backup via USB, Web Interface, and Luma View app
• Preview, record, playback, backup, and remote access
• DHCP, DDNS, and PPPoE network protocol
• Remote control via Web
• 16 physical PoE network ports
• Dual stream technology
• User Authorization Management
• Allows users to access NVR simultaneously
• Dual HDMI output ports; true high-resolution display
• Dual Ethernet Ports for backup in case of network failure
• 196Mbps incoming and outgoing bandwidth
• Includes built-in power supply
• Remote monitoring support via Luma View app

General Specifications:

• PoE Max Power Output (each port): ≤ 30W; Maximum ≤ 150W
• Power Consumption: ≤ 20W (without HDD & PoE Power Supply)
• Power Supply: ATX 300W
• Certifications: ETL Listed, CE, FCC
• Operating Temperature: -10 – 50°C
• Dimensions (W x H x D): 17.32″ x 14.37″ x 3.45″
• Weight: 10.80 lbs.
