Product Description:

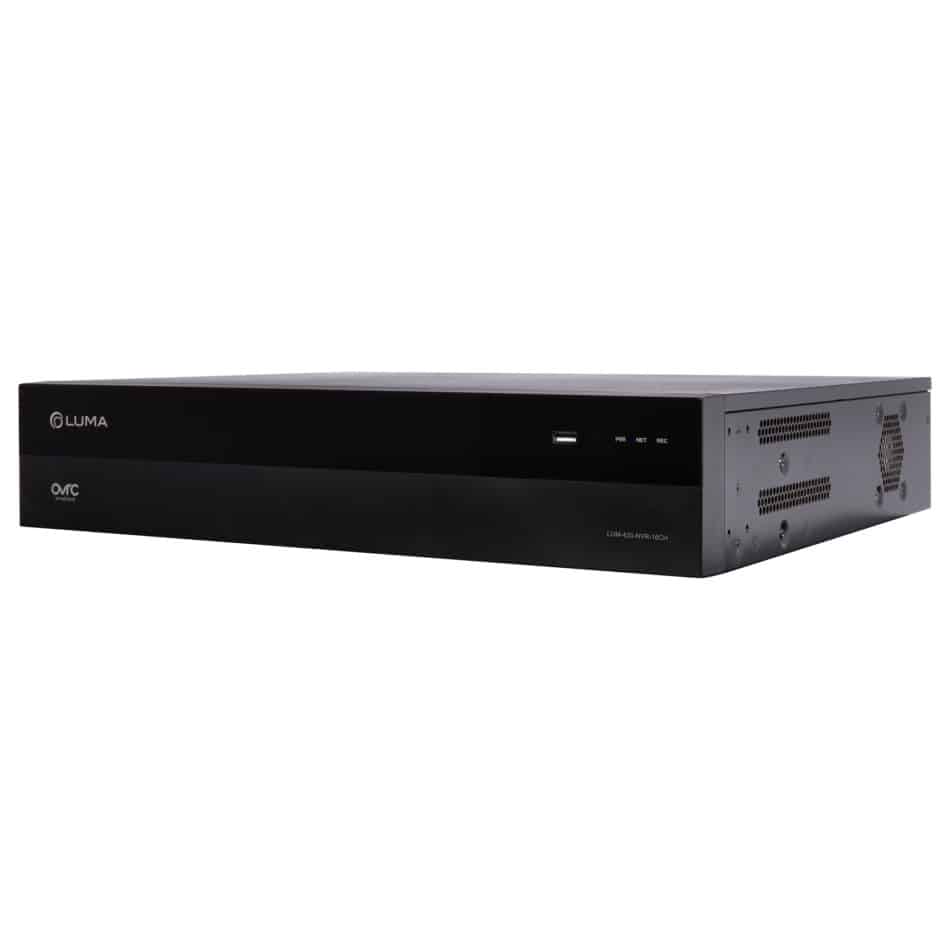

This Luma 420 Series Network Video Recorder is an advanced solution for residential and small business surveillance applications that complies with the NDAA and that offers high performance. It supports camera resolutions up to 12 MP and has 0TB, 8TB, and 16TB configurations available, flexible capacity with support for up to four internal hard drives (up to 72TB total). This NVR requires minimal installation with 16 built-in PoE ports that provide up to 30W of power per port. Dual Gigabit Ethernet ports offer network redundancy, while dual HDMI outputs and VGA provide flexible display options—including support for 4K resolution. Technologies such as AI-driven detection of humans, vehicles, and nonmotor vehicles help to improve situational awareness, allowing finding of important footage. Users can conveniently control the system remotely via the Luma View app or through a web browser and enjoy smart recording modes, USB, or web backup.

Coming in a 2U rack-mountable chassis and certified by ETL, CE, and FCC, the Luma 420 Series Network Video Recorder is designed for performance in different environments. But if you’re looking for more options, feel free to check our available Luma devices here in our shop.

Main Features:

• Supports 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280× 1024/960P/720P/960H/D1/CIFIP video input
• H.265/H.265+/H.264/H.264+ encoding codec
• Multi-mode recording
• Playback: 16CH simultaneous playbacks
• Search: time slice, time, event, tag, and smart search
• Supports multiple Video Content Analysis (VCA) events
• Express & flexible backup via USB, Web interface, and Luma View app
• Preview, record, playback, backup, and remote access
• DHCP, DDNS, and PPPoE network protocols
• Remote control via Web
• 16 physical PoE network ports
• Dual stream technology
• User Authorization Management
• Allows users to accessthe  NVR simultaneously
• Dual HDMI output ports; true high-resolution display
• Dual Ethernet Ports for backup in case of network failure
• 160 Mbps incoming and outgoing bandwidth
• Includes built-in power supply
• Remote monitoring support via the Luma View app

General Specifications:

• PoE Max Power Output (each port): ≤ 30W; Maximum ≤ 150W
• Power Consumption: ≤ 20W (without HDD & PoE Power Supply)
• Power Supply: ATX 300W
• Operating Temperature: ‘-10 – 50°C
• Dimensions (W x H x D): 17.32″ x 14.37″ x 3.45″
• Weight: 10.80 lbs.
