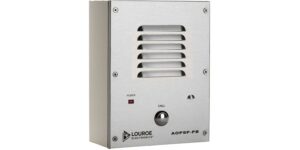

IP Camera Microphone/Speaker Description:

IP Camera Microphone/Speaker is a speaker/microphone metal enclosure that adapts and connects with your IP camera. While It is designed to interface with various modes of audio/video transmission systems. In addition, It provides bi-directional audio with the receiving source (DVR, PC sound card, IP Network cameras with audio, as well as video servers with audio). The
speaker contains a built-in electric condenser microphone and a 4” speaker. Also, it has control potentiometers for adjusting the sensitivity of both transmitted and received audio. It also comes with both back boxes for Flush and Surface mounting to a wall. Furthermore, the unit is weather resistant and may be used for outdoor applications. It is also vandal-resistant and weatherized for outdoor application call buttons.

Key Features:

• Speaker microphone for IP cameras
• Designed for outdoor use as well as indoor wall
• Omni-directional microphone, within 30′ diameter
• 4″ Speaker w/ 1 W Amplifier
• Hands-Free Operation
• Line-level input & output
• External Controls for Adjusting Volume of Both Listen and Talk Back
• Power LED on Faceplate
• Made in USA

Application:

This model has the electronics to provide two-way/talk-listen audio with the following transmission systems:

• DVR’s
• PC Sound cards and sound card modules
• Audio over IP Camera
• Wireless video systems that accept audio
• Video Servers

SPECIFICATIONS (Microphone)

• Audio output: Line level (0 dB @ 600W) unbalanced
• Microphone element sensitivity: -45 dB
• Frequency response: 40 Hz – 15kHz

SPECIFICATIONS (Speaker)

• Power output: 1W
• Speaker magnet: 1.73 oz ceramic
• Speaker size: 4”
• Current Drain: 200mA
• Supply Voltage: 12Vdc
• Dimensions
  – Faceplate: 8” H x 6 1/4” W
  – Metal Backbox: 8” H x 6 1/4” W x 2 3/4” D
  – Plastic Backbox: 8” H x 6 1/4” W x 2 5/8” D
• Weight: 1lb 6 oz
• Shipping Weight: 6 lbs
