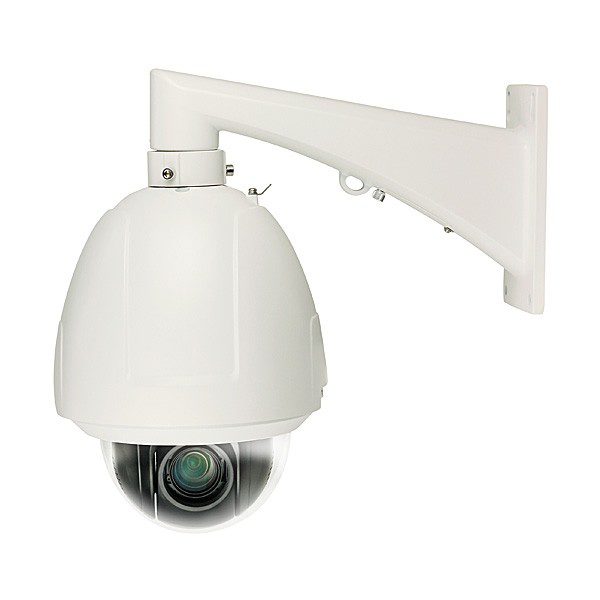

2MP IP PTZ Camera Features:

2MP IP PTZ Camera 1/3″ Progressive Scan CMOS
20X Optical Zoom (4.7-94mm)
Smart Tracking
True Day/Night, 3D DNR
30fps(N)/25fps(P) at HD 1080P Resolution
H.264/MJPEG
Dual Streaming
Privacy Masking
IP66
Wall Mount Bracket Included
PoE Included
AC 24V

• Camera Resolution
  2.0MP / 1080P
• Camera Technology
  IP / Network
• Camera Housing
  PTZ
• Featured Product
  No
• Specifications
• Camera
• Image sensor
  1/3″ Progressive Scan CMOS
• Effective pixel
  2230K pixels

Additional Features:

• Min. illumination
  Color: 0.05Lux@F1.6, B/W: 0.005Lux@F1.6
• White balance
  Auto / manual / one touch wb / atw
• AGC
  Auto / manual
• S / N ratio
  ≥ 50dB
• DNR
  Off / normal / expert
• BLC
  On / Off
• Shutter time
  50Hz: 1/25-1/100,000s, 60Hz: 1/30-1/100,000s
• Day & night
  IR Cut Filter
• Privacy mask
  24 privacy masks programmable; a max. of 8 zones can be masked simultaneously on the same video screen
• Focus mode
  Auto / semiautomatic / manual
• Lens
• Focal length
  4.7 – 94mm, 20x

Further specs:

• Zoom speed
  Approx.2.7s (Optical Wide-Tele)
• Angle of view
  58.3 – 3.2 degree (Wide-Tele)
• Min. working distance
  10 – 1,500mm (Wide-Tele)
• Aperture range
  F1.6 – F3.5
• Pan and tilt
• Pan range
  360° endless
• Pan speed
  Pan manual speed: 0.1° -300°/s, pan preset speed: 540°/s
• Tilt range
  -5° – 90° (Auto Flip)
• Tilt speed
  Tilt manual speed: 0.1°-240°/s, tilt preset speed: 400°/s
• Proportional zoom
  Rotation speed can be adjusted automatically according to zoom multiples
• Number of preset
  256
• Patrol
  8 patrols, up to 32 presets per patrol
• Pattern
  4 patterns, with the recording time not less than 10 minutes per pattern
• Power-o memory
  Support
• Park action
  Preset / patrol / pattern / pan scan / tilt scan / random scan / frame scan / panorama scan
• PTZ position display
  On / Off
• Preset freezing
  Support
• Alarm input: 7
• Alarm output: 2 relay outputs,alarm response actions configurable
• Additionally Alarm actions: Preset, Patrol, Pattern, SD/SDHC card record, Relay output, Notication on client
• Input/output
• Monitor output: 1.0V[p-p] / 75 , NTSC (or PAL) composite, BNC
• Audio input: (Line input), 2-2.4V[p-p]; output impedance: 1K , ±10%
• Audio output:Line level, impedance: 600

Network

• Ethernet
  10Base-T / 100Base-TX, RJ45 connector
• Max.image resolution
  1920×1080
• Frame rate
  50Hz: 25 fps (1920×1080), 25 fps (1280×960) , 25 fps (1280×720); 60Hz: 30 fps (1920×1080), 30 fps (1280×960), 30 fps (1280×720)
• Image compression
  H.264 / MJPEG / MPEG4
• Audio compression
  G.711ulaw / G.711alaw / G.726
• Protocols
  IPv4, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
• Number of Simultaneous
  Live View Up to 10
• Dual streams
  Support
• Mini SD memory card
  Manual REC / Alarm REC. Built-in SD/SDHC Slot, up to 32GB
• User / host level
  Up to 16 users,3 Levels: Administrator, Camera control, Live view only
• Security measures
  User authentication (ID and PW), Host authentication (MAC address)

System Integration

• Interface for application programming
  Open-ended API, support Onvif, PSIA and CGI
• Client GUI
• Camera control
  Pan / tilt, zoom, focus, click centering, drag zoom, iris, preset position call and program, auto mode.
• Camera name
  Up to 18 characters
• Date & time display
  Time: week: date, 6 formats on the client
• Reading patrol message
  Display and reading of preset message contained in each patrol via client software

General

• Menu language: English
• RS-485 protocols (optional) LTS, Pelco-P, Pelco-D, self-adaptive
• Power supply: 24VAC / 3A
• Power consumption: Max. 40W (Heater On), Max. 20W(Heater Off)
• Working temperature / humidity: -30 °C ~ 65 °C (-22 °F ~ 149 °F) (outdoor) / -10 °C ~ 50 °C (14 °F ~ 122 °F) (indoor), 90% or less
• Protection level :IP66 standard (outdoor dome); TVS 4,000V lightning protection, surge protect & voltage transient protection
• Impact Protection
  IEC60068-275Eh, 20J; EN50102, up to IK10
• Dimensions: Φ220 × 325.5mm ( 8.66” × 12.81”)
• Weight (approx.): 5Kg (11.02Ibs)
